Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Floor Shift: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the floor console. REFER to: Floor Console .

2.

Remove the retainers, detach the wire harness pin-type retainer, and remove the floor console air duct.

Courtesy of FORD MOTOR COMPANY

3.

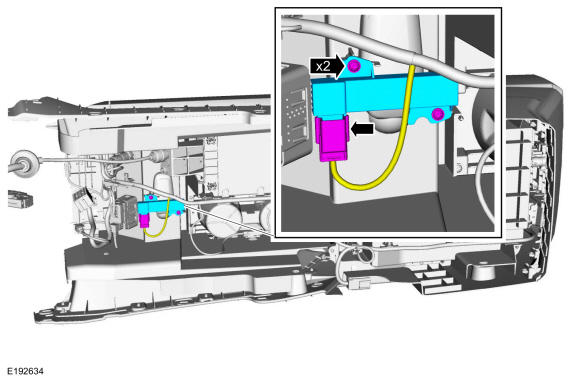

Disconnect the electrical connector, remove the retainers and the center PATS antenna.

Courtesy of FORD MOTOR COMPANY
