Passive Anti-Theft System (PATS) Center Antenna - Vehicles With: Column Shift: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

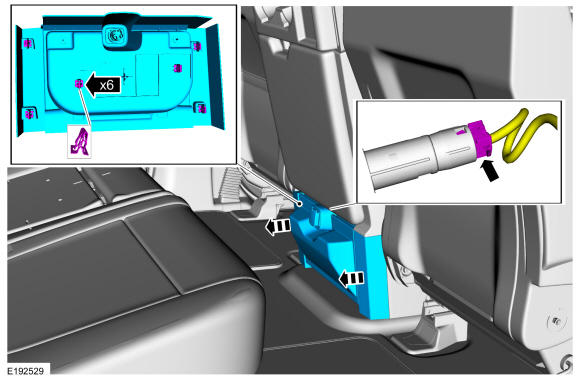

Release the clips, disconnect the auxiliary power outlet electrical connector and remove the rear trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

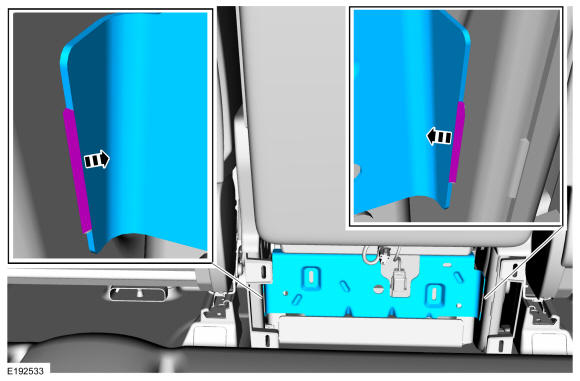

Release the tabs and remove the center seat lower rear trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

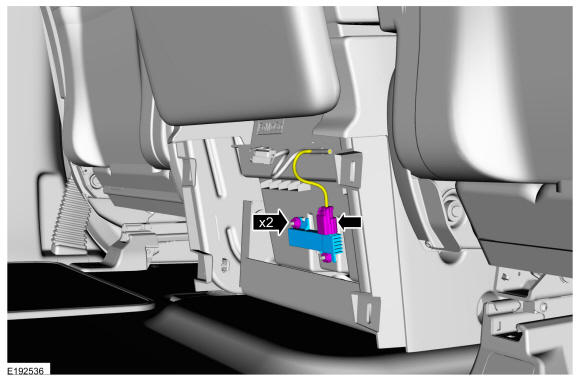

Remove the retainers, disconnect the electrical connector and remove the center PATS antenna.
 Courtesy of FORD MOTOR COMPANY
|
