Windshield Wiper Pivot Arm: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

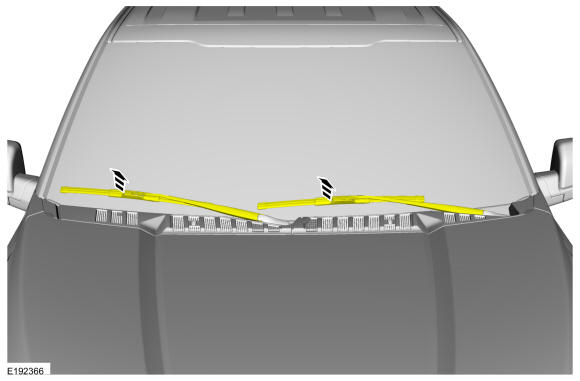

Raise the windshield wiper pivot arms into the SERVICE-UP position.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: During installation, it is necessary to fully release the windshield wiper pivot arm latch and hold while installing the pivot arm onto the wiper linkage assembly.

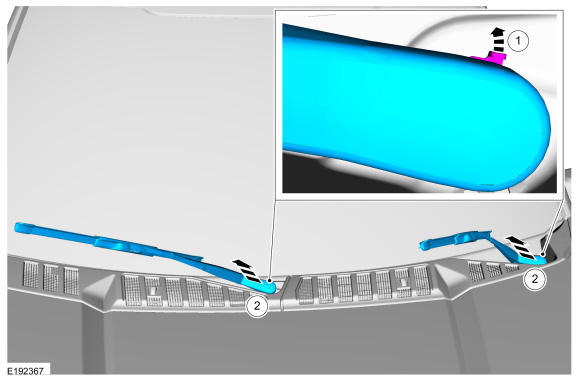

Remove the windshield wiper pivot arms.
1. 1.

  Release the windshield wiper pivot arm latch.
1. 2.

  Remove the windshield wiper pivot arm.

Courtesy of FORD MOTOR COMPANY
