Windshield Wiper Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly .

2.

NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

Detach the RH windshield wiper link from the windshield wiper motor crank.
1. 1.

  Detach the link.
1. 2.

  Position the link aside.

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Be careful not to damage the link seals during removal. Failure to follow this instruction may result in poor windshield wiper performance.

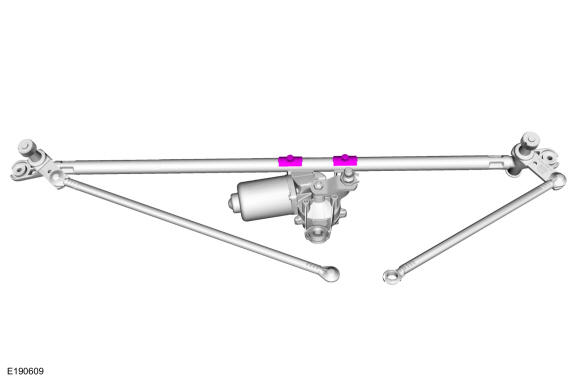

Detach the LH windshield wiper link from the windshield wiper motor crank.
1. 1.

  Detach the link.
1. 2.

  Position the link aside.

Courtesy of FORD MOTOR COMPANY

4.

Remove the windshield wiper motor bolts and motor clamp plates.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

5.

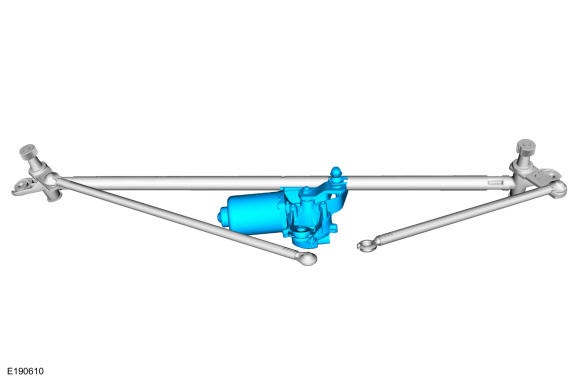

Remove the windshield wiper motor from the wiper linkage assembly.

Courtesy of FORD MOTOR COMPANY
