Windshield Washer Reservoir: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Siphon the windshield washer fluid out. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

2.

Remove the battery tray. Refer to: Battery Tray .

3.

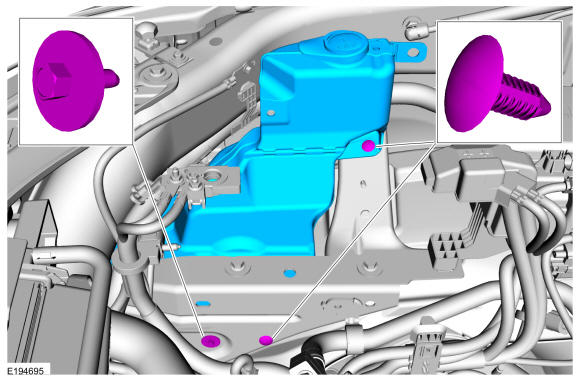

Remove the pin-type retainers and the bolt.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY

4.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .

5.

NOTE: Be prepared to collect escaping fluid.

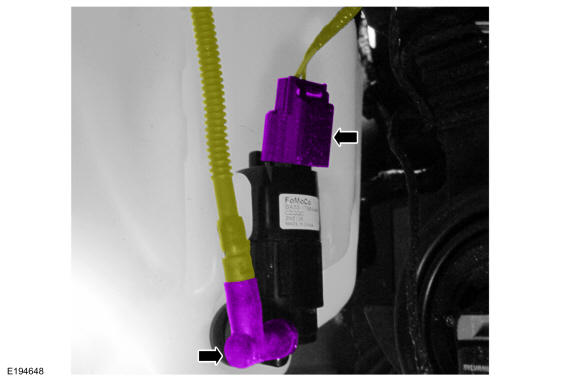

Disconnect the windshield washer electrical connector and washer hose.

Courtesy of FORD MOTOR COMPANY

6.

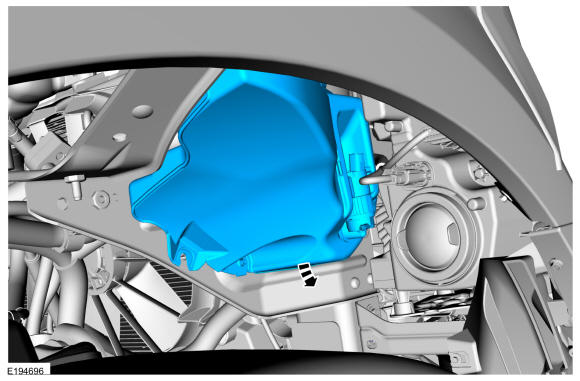

Remove the windshield washer reservoir.

Courtesy of FORD MOTOR COMPANY
