Windshield Washer Pump: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

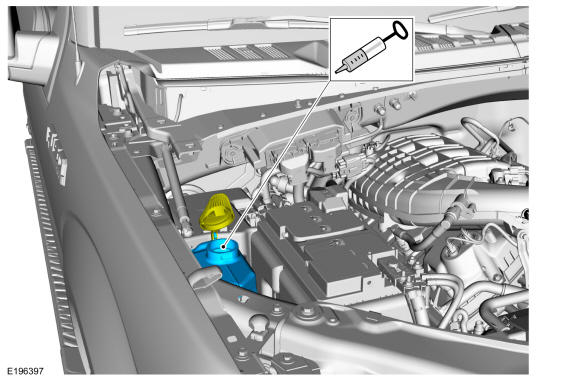

Siphon the windshield washer fluid out. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY

2.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .

3.

NOTE: Be prepared to collect escaping fluid.

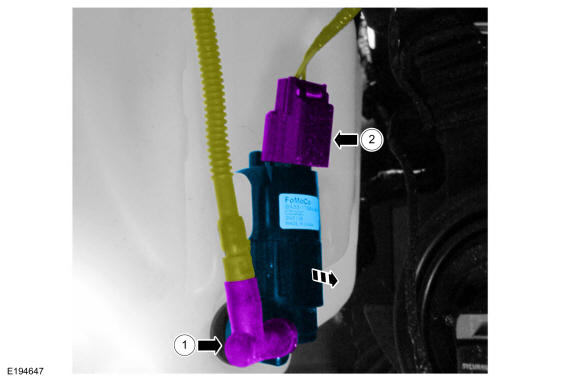

Remove the washer pump.
1. 1.

  Disconnect the washer hose.
1. 2.

  Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
