Spot Lamp Switch: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

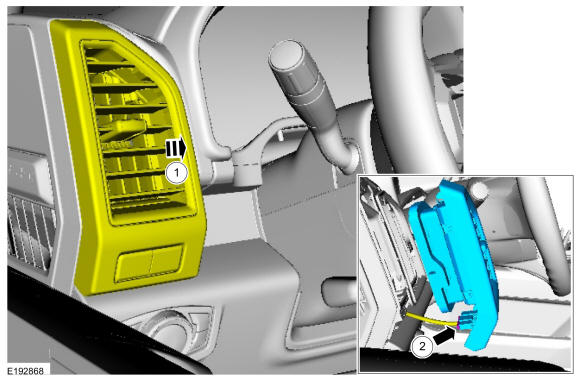

Remove the LH instrument panel vent.
1. 1.

  Position the LH instrument panel vent aside.
1. 2.

  Disconnect the LH instrument panel vent electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

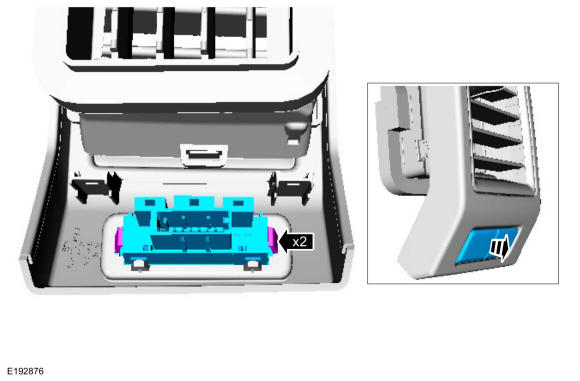

Release the locking tabs and remove the spot lamp switch.

Courtesy of FORD MOTOR COMPANY
