Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

1.

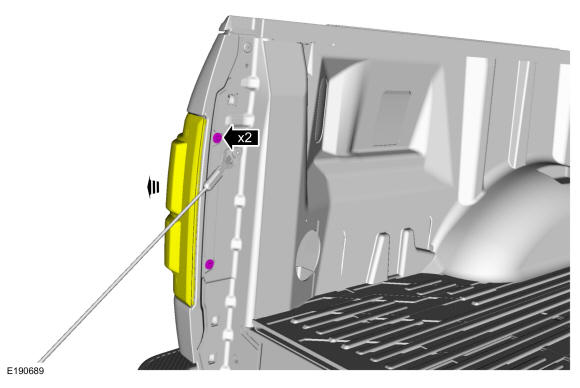

Remove the screws and position the rear lamp assembly aside.

Courtesy of FORD MOTOR COMPANY

Vehicles with incandescent lamps

2.

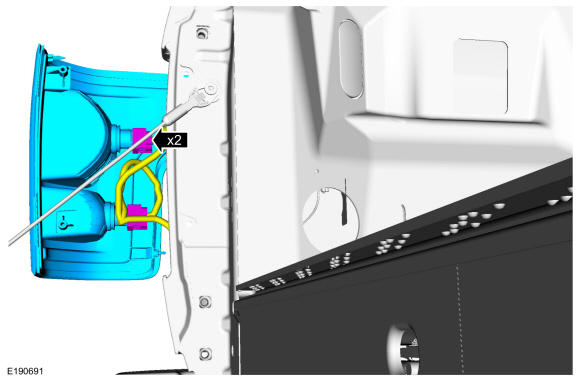

Disconnect the rear lamp assembly electrical connectors.

Courtesy of FORD MOTOR COMPANY

Vehicles with LED lamps

3.

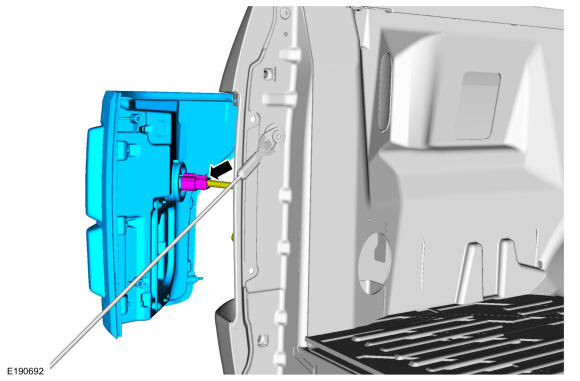

Disconnect the rear lamp assembly electrical connector.

Courtesy of FORD MOTOR COMPANY

4.

Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .

5.

NOTE: If equipped with SODL or SODR

NOTE: Carry out this step only if installing a new rear lamp assembly.

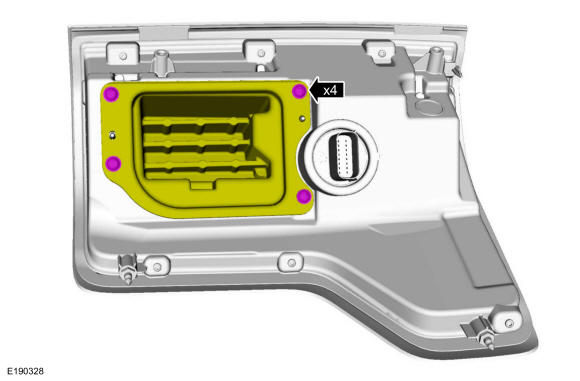

Remove the screws and position the SODL or SODR cover aside.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: If equipped with SODL or SODR

NOTE: Carry out this step only if installing a new rear lamp assembly.

Remove the SODL or SODR.

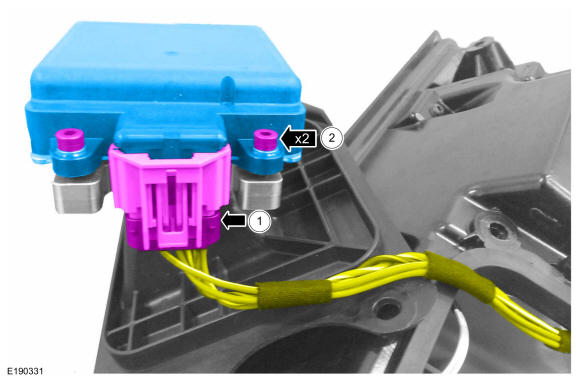

1. 1.

  Disconnect the electrical connector.
1. 2.

  Remove the screws.

Courtesy of FORD MOTOR COMPANY
