Headlamp Switch: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
NOTE:
Push button start vehicle shown, all others similar.
Lower the steering column opening trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

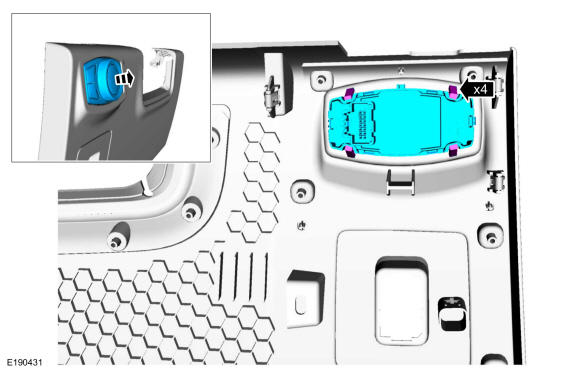

Release the tabs and remove the headlamp switch.
 Courtesy of FORD MOTOR COMPANY
|
