Headlamp Assembly: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.
Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview
.
Vehicles without fender mouldings
- 2.

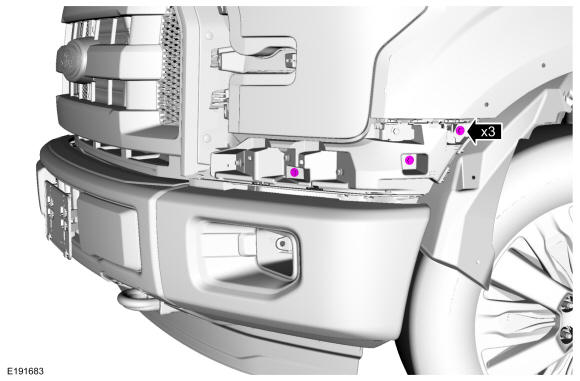

Remove the headlamp trim panel screws and push pin.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles equipped with fender mouldings
- 3.

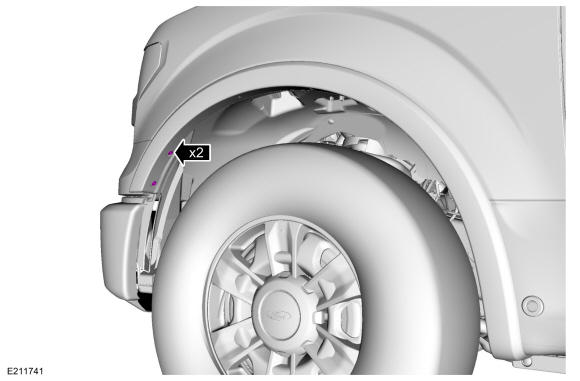

Remove the two fender moulding screws.
 Courtesy of FORD MOTOR COMPANY
|

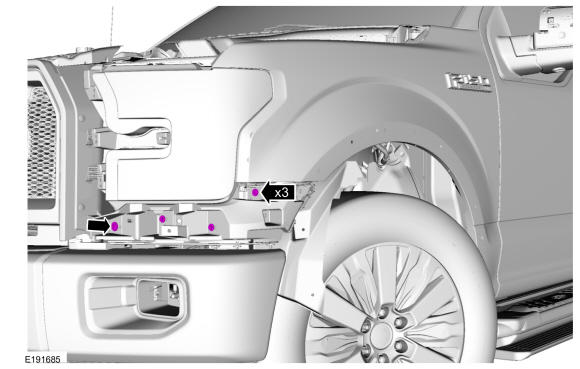

- 4.

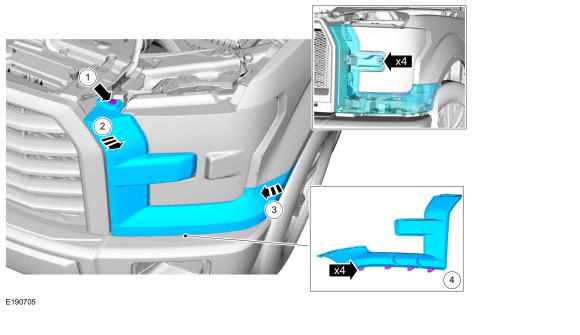

Release the front three fender moulding retainers and position the fender moulding out.
 Courtesy of FORD MOTOR COMPANY
|

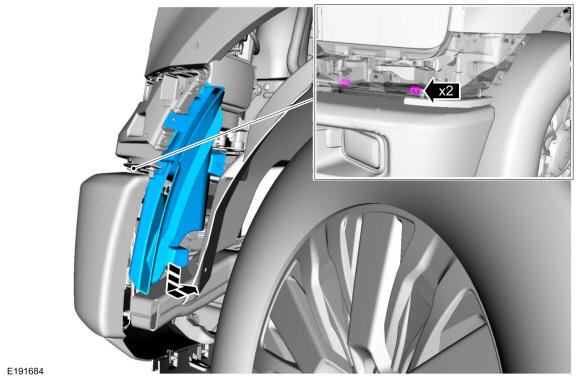

- 5.
Remove the pushpins and screws, position the fender liner aside.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 6.

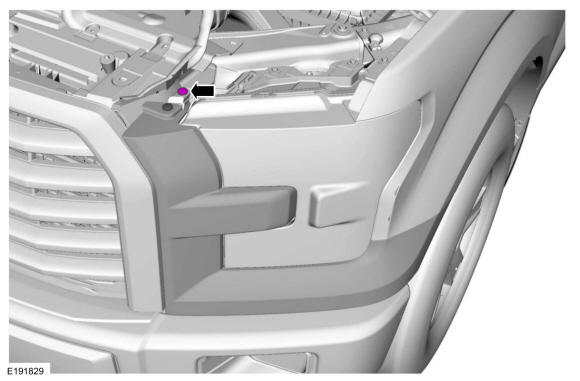

Remove the pin-type retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Remove the headlamp assembly trim panel.
- 1.
Remove the pin-type retainer.
- 2.
Starting at the inner edge release the headlamp assembly trim panel clips.
- 3.
Starting at the outer edge release the headlamp assembly trim panel.
- 4.
Using a flat-blade screwdriver release the locking tabs.
 Courtesy of FORD MOTOR COMPANY
|
- 8.

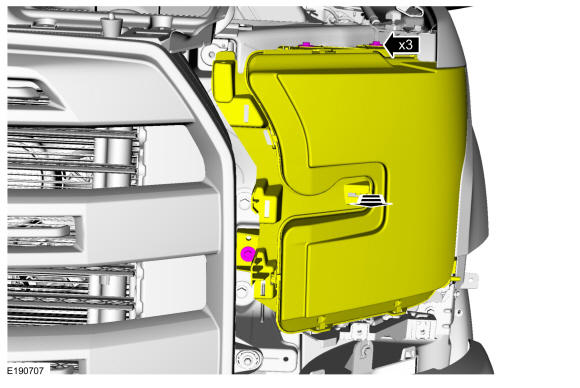

Remove the screws.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Release the two tabs and remove the air channel.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Remove the headlamp assembly trim panel bracket screws.
 Courtesy of FORD MOTOR COMPANY
|
- 11.

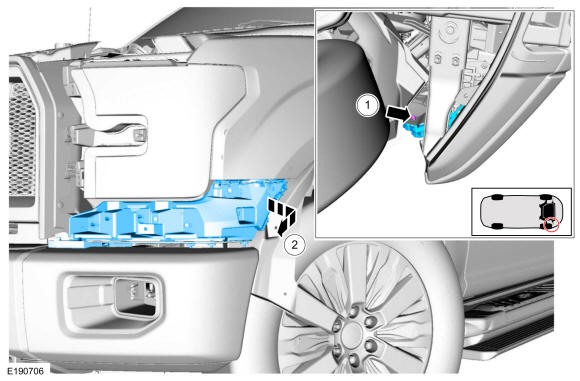

Remove the headlamp assembly trim panel bracket.
- 1.
Squeeze the tabs and release the headlamp assembly trim panel bracket.
- 2.
Slide the bracket outward.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles with halogen headlamps

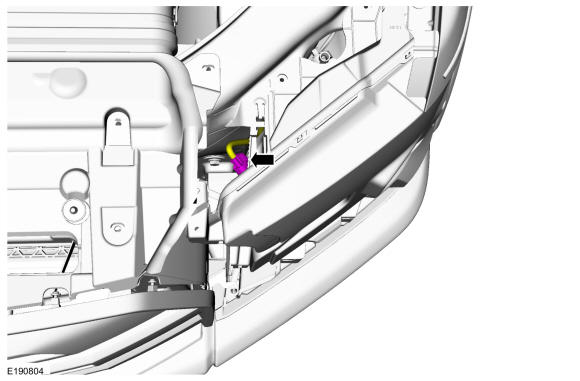

- 12.

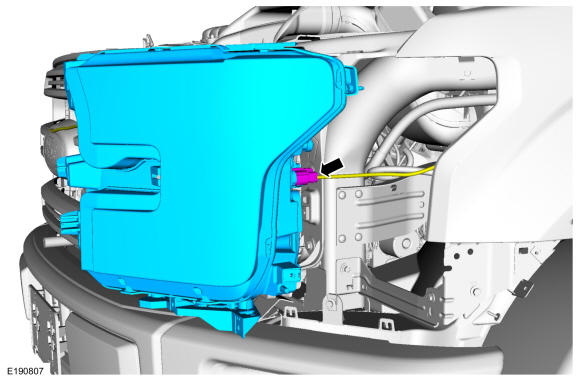

Disconnect the marker lamp electrical connector.
 Courtesy of FORD MOTOR COMPANY
|
All vehicles
- 13.
Remove the headlamp assembly screws and position the headlamp assembly forward.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles with halogen headlamps
- 14.

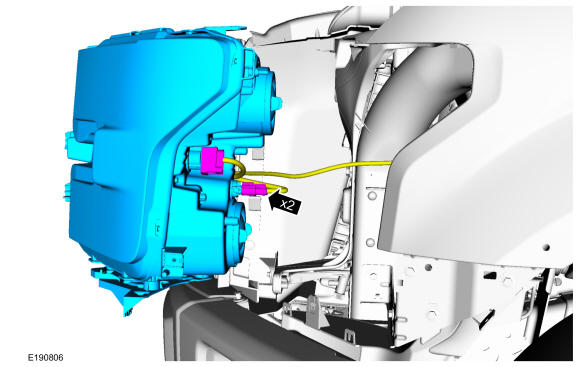

Disconnect the electrical connectors and remove the headlamp assembly.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles with LED headlamps
- 15.
Disconnect the electrical connectors and remove the headlamp assembly.
 Courtesy of FORD MOTOR COMPANY
|
