Front Turn Signal Lamp Bulb: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Vehicles equipped with halogen headlamps
- 1.
Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview
.
- 2.
Remove the headlamp trim panel screws and push pin.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles equipped with fender mouldings
- 3.
Release the front three fender moulding retainers and position the fender moulding out.
 Courtesy of FORD MOTOR COMPANY
|
Vehicles equipped with halogen headlamps
- 4.
Remove the pushpins and screw, Position the fender liner aside.
 Courtesy of FORD MOTOR COMPANY
|
- 5.

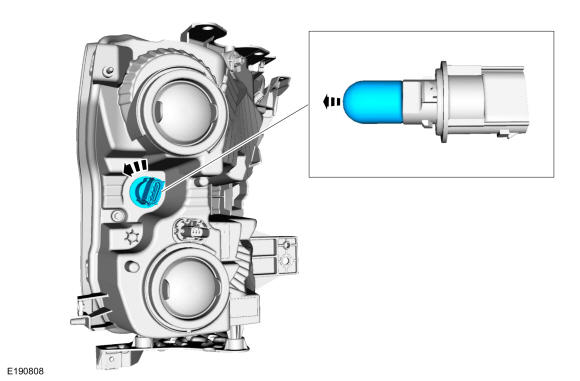

Remove the bulb holder and remove the turn signal bulb.
 Courtesy of FORD MOTOR COMPANY
|
