Front Fog Lamp: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front bumper. Refer to: Front Bumper .

2.

NOTE: On both sides.

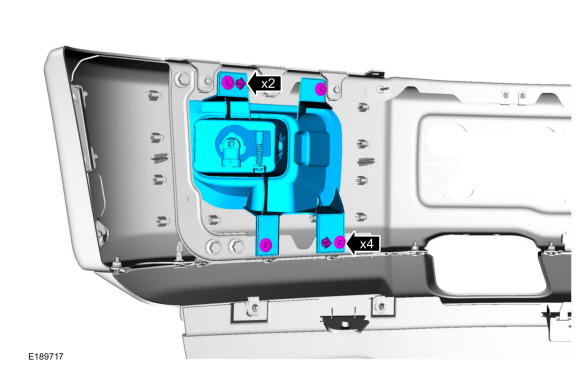

Remove the fog lamp bolts, release the push pins and remove the fog lamp assembly.

Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY
