Removal And Installation: Ballast: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the headlamp assembly. Refer to: Headlamp Assembly .
- 2.

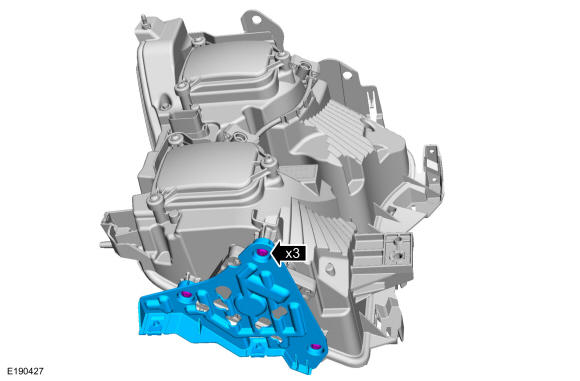

Remove the screws and the headlamp bracket.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

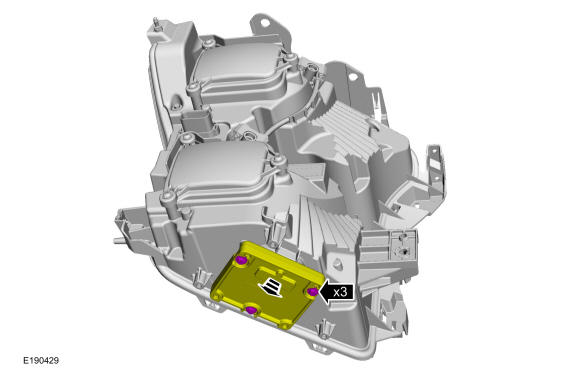

Remove the screws and position the ballast down
 Courtesy of FORD MOTOR COMPANY
|
- 4.

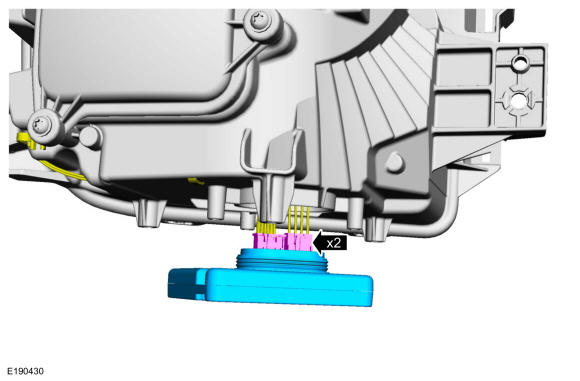

Disconnect the electrical connectors and remove the ballast.
 Courtesy of FORD MOTOR COMPANY
|
