Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper instrument panel center finish panel screw covers.
    • If equipped, disconnect the electrical connectors.

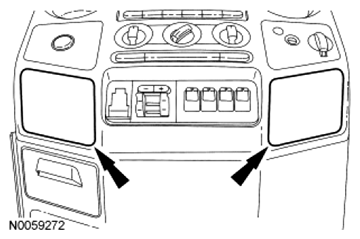

      Fig 1: Locating Upper Instrument Panel Center Finish Panel Screw Covers
      G06779654Courtesy of FORD MOTOR CO.
  2. Remove the 2 upper instrument panel center finish panel screws.

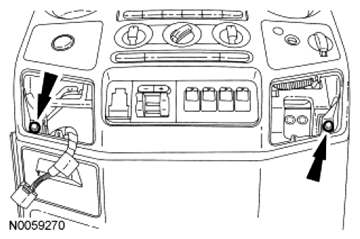

    Fig 2: Locating Upper Instrument Panel Center Finish Panel Screws
    G06779655Courtesy of FORD MOTOR CO.
  3. Remove the upper instrument panel center finish panel.
    • Pull rearward to release the upper instrument panel center finish panel retaining clips.
    • Disconnect the electrical connectors.
  4. To install, reverse the removal procedure.
    • Make sure the clear mylar anit-squeak tape is still on the LH edge.
    • Make sure to align the trim panel retaining clips to the adjacent retaining clip holes.
