Instrument Panel Fasteners and Electrical Connectors
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

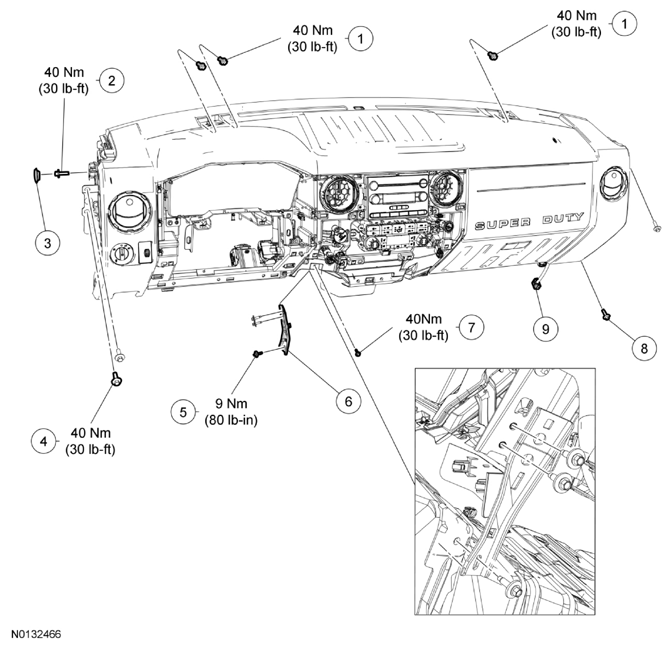

Fig 1: Exploded View Of Instrument Panel Fasteners With Torque Specifications And Electrical Connectors
| Item | Part Number | Description |
|---|---|---|
| 1 | N808898 | Instrument panel upper cowl bolt (3 required) |
| 2 | N808898 | Instrument panel side bolt |
| 3 | - | Instrument panel side bolt cover |
| 4 | N808898 | Instrument panel bolt (3 required) |
| 5 | W705132 | Instrument panel lower support bracket bolt (3 required) |
| 6 | 25045B00 | Instrument panel lower support bracket |
| 7 | N808898 | Lower instrument panel center support bolt |
| 8 | N808898 | Instrument panel bolt (2 required) |
| 9 | 14401 | Instrument panel wiring harness |
- For additional information, refer to the appropriate procedures in this service information.
