Steering Wheel Multifunction Switch: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: High series shown, others similar.

1.

Remove the driver airbag. Refer to: Driver Airbag .

2.
1. 1.

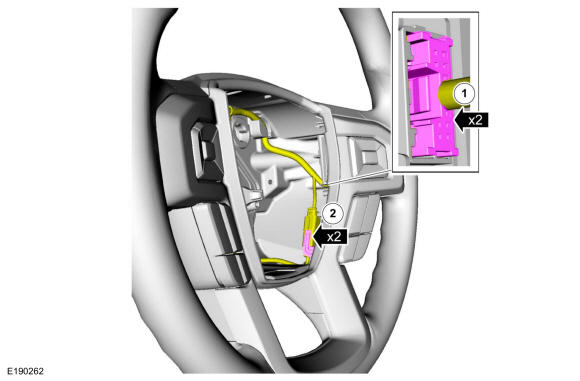

  On both sides, disconnect the electrical connector.
1. 2.

  On both sides, detach the wire harness from the bezel.

Courtesy of FORD MOTOR COMPANY

3.

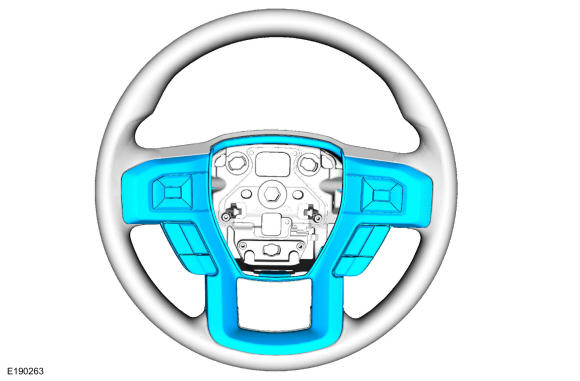

Using a suitable flat-bladed tool, remove the steering wheel switch bezel.

Courtesy of FORD MOTOR COMPANY

4.

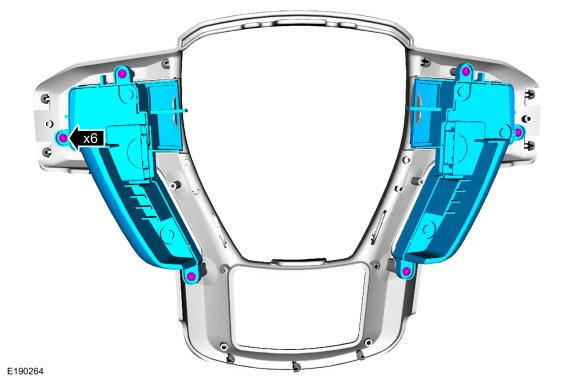

Remove the screws and the steering wheel multifunction switches.

Courtesy of FORD MOTOR COMPANY
