Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the steering column shrouds. Refer to: Steering Column Shrouds .

  1. 2.

    If equipped, remove the steering column control switch. Refer to: Steering Column Control Switch .

  1. 3.

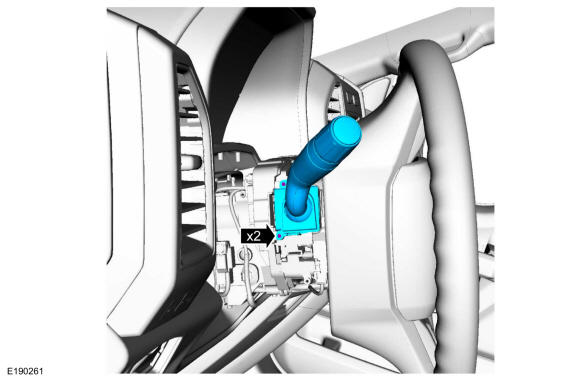

    Remove the screw(s) and the steering column multifunction switch.
GFD39027Courtesy of FORD MOTOR COMPANY
