Ignition Switch: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the steering column shrouds. Refer to: Steering Column Shrouds .

2.

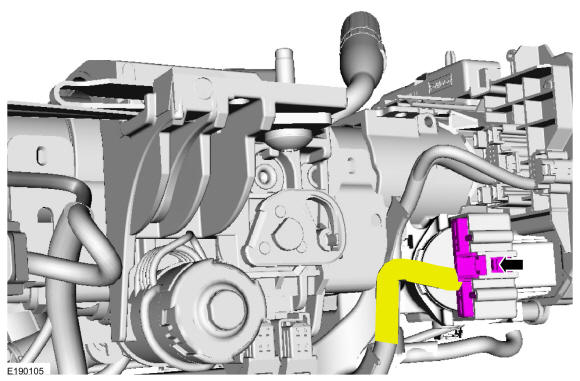

Disconnect the ignition switch electrical connector.

Courtesy of FORD MOTOR COMPANY

3.
1. 1.

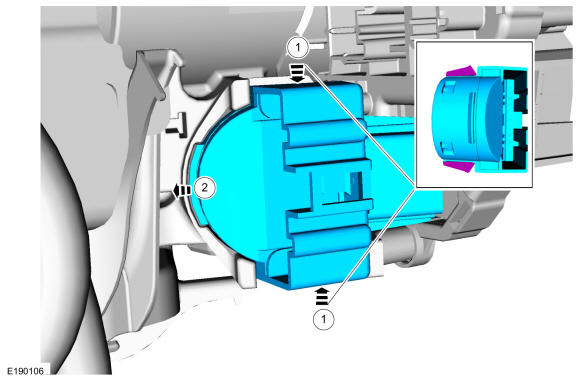

  Push in the ignition switch tabs.
1. 2.

  Remove the ignition switch.

Courtesy of FORD MOTOR COMPANY
