Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

2.

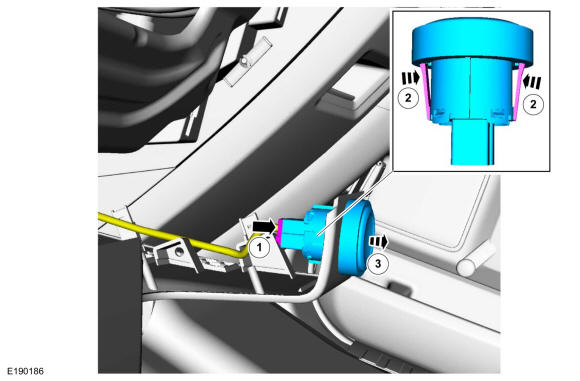

Remove the start/stop switch
1. 1.

  Disconnect the start/stop switch electrical connector.
1. 2.

  Release the start/stop switch tabs.
1. 3.

  Push the start/stop switch out of the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY
