Heated Steering Wheel Module (HSWM): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    NOTE: This step is only necessary when installing a new component.
    NOTE: The PMI process must begin with the current HSWM installed. If the current HSWM does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

    Using a diagnostic scan tool, begin the PMI process for the HSWM following the on-screen instructions.

  1. 2.

    Lower the steering column opening trim panel.
GFD38978Courtesy of FORD MOTOR COMPANY

  1. 3.

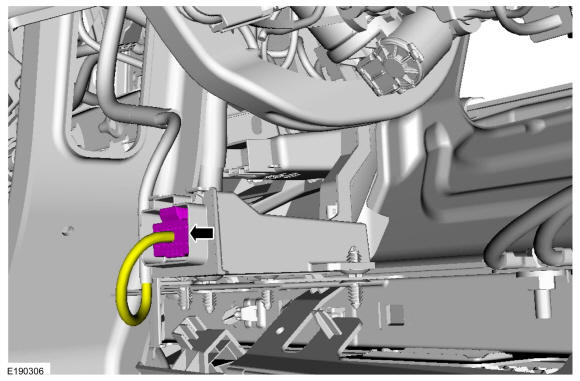

    Disconnect the HSWM electrical connector.
GFD39018Courtesy of FORD MOTOR COMPANY

  1. 4.

    NOTE: Steering column reinforcement panel removed for clarity.

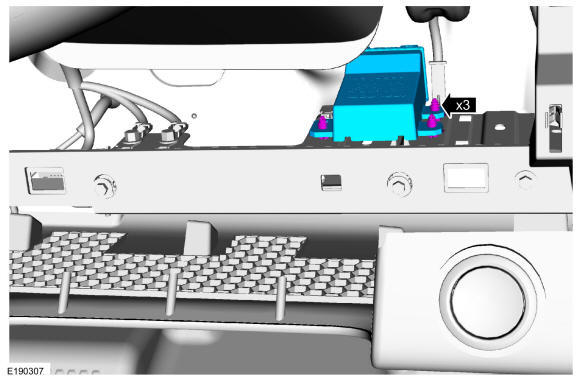

    Remove the retainers and the HSWM.

GFD39019Courtesy of FORD MOTOR COMPANY
