Steering Wheel: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: High series heated steering wheel shown in illustration, all others similar.

NOTE: Make sure the wheels are in the straight ahead position.

1.

Remove the driver airbag module. REFER to: Driver Airbag .

2.

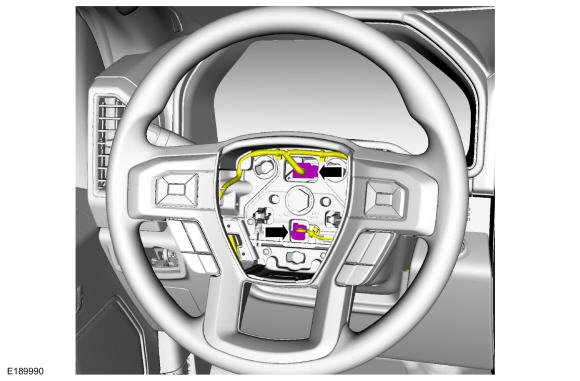

Disconnect the steering wheel electrical connector(s).

Courtesy of FORD MOTOR COMPANY

3.

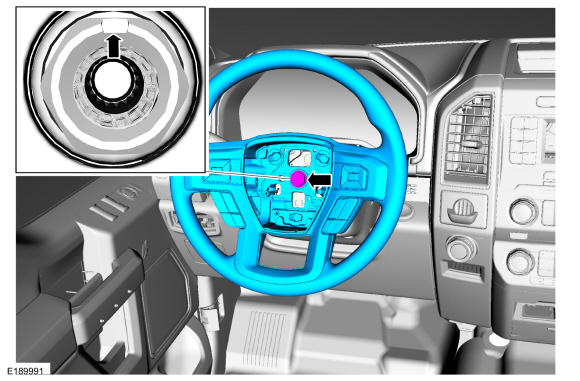

NOTE: Make sure the tick-mark on the end of the steering column shaft is on the top position.

Remove the steering wheel bolt and the steering wheel.

Torque

: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

4.

Tape the clockspring rotor to the outer housing to keep it from rotating.

Courtesy of FORD MOTOR COMPANY
