Steering Column: Removal

All vehicles

1. 1.


   NOTE: Push button start vehicle shown in illustration, all others similar.

   Lower the steering column opening trim panel.

Courtesy of FORD MOTOR COMPANY

1. 2.

   Disconnect the electrical connector(s).

Courtesy of FORD MOTOR COMPANY

1. 3.


   NOTE: Push button start vehicle shown in illustration, all others similar.

   Remove the screws and the steering column opening trim panel.

   Torque

   : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 4.

   Remove the bolts and the steering column reinforcement panel.

   Torque

   : 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

1. 5.

   Remove the SCCM. REFER to: Steering Column Control Module (SCCM) .

Vehicles with selector lever

1. 6.

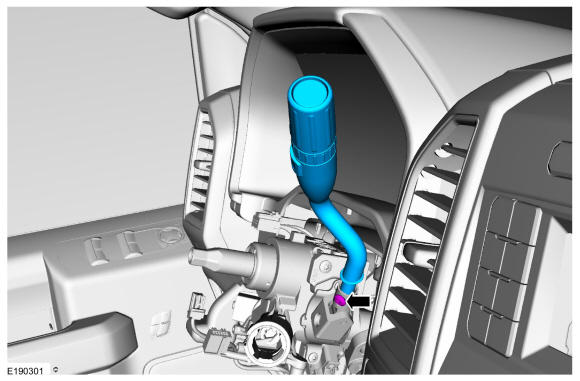

   Remove the screw and the selector lever.

   Torque

   : 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 7.


   NOTE: Vehicles equipped with power adjustable steering column shown in illustration, all others similar.

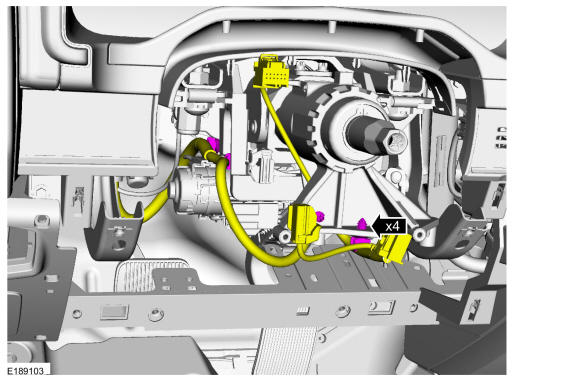

   Release the retainers and position the wire harness aside.

Courtesy of FORD MOTOR COMPANY

Vehicles with power adjustable steering column

1. 8.

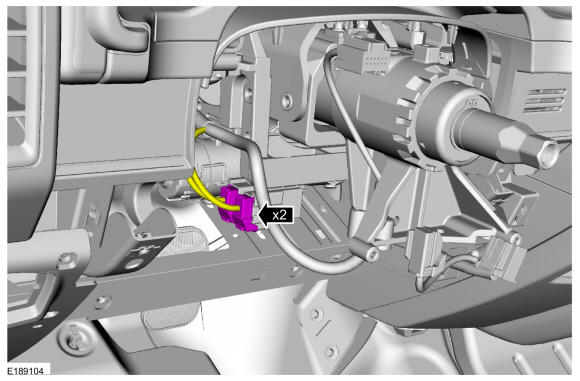

   Disconnect the power tilt motor and power telescopic motor electrical connectors.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 9.

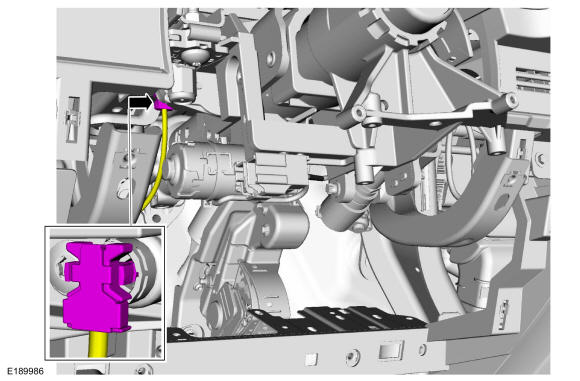

   Disconnect the deployable column electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 10.


   WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

   Remove and discard the bolt and disconnect the upper steering column shaft.

   Torque

   : 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

1. 11.


   WARNING: Do not reuse steering column nuts. This may result in fastener failure and steering column detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

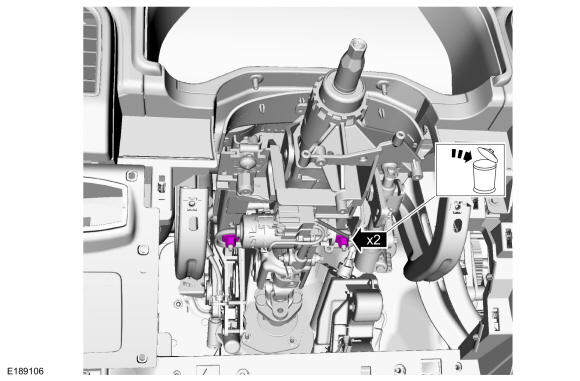

   Remove and discard the nuts.

   Torque

   : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

1. 12.

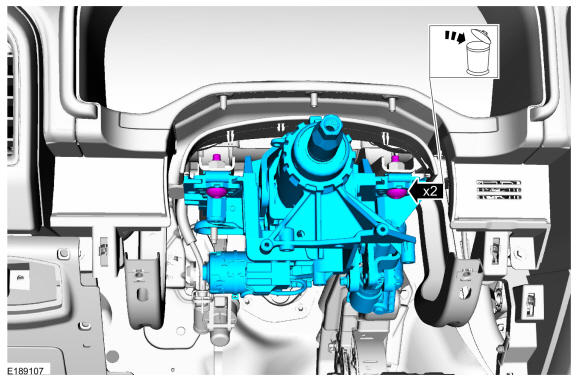

   Remove and discard the bolts and remove the steering column.

   Torque

   : 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY
