Steering Column Upper Shaft: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

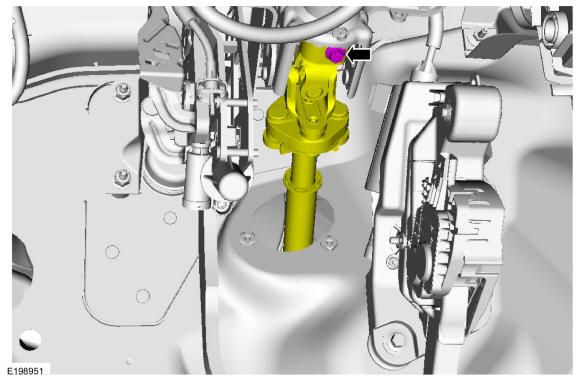

Connect the upper shaft to the steering column and install the new bolt.Torque
: 21 lb.ft (28 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 2.

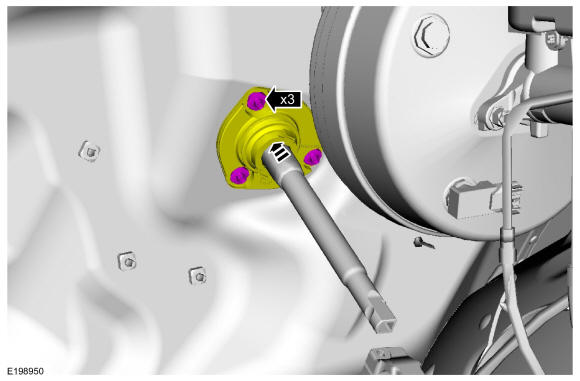

Seat the dash seal and install the new bolts.Torque
: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 3.

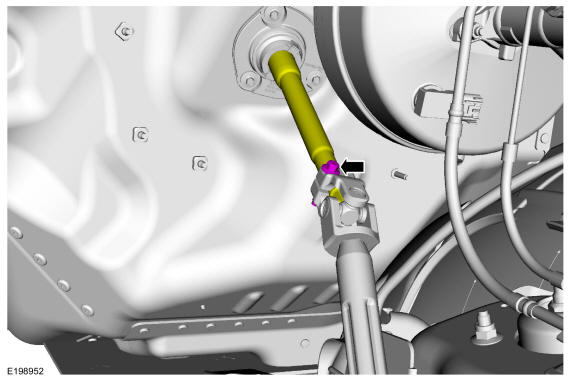

Connect the upper shaft to the lower shaft and install the new bolt.Torque
: 22 lb.ft (30 Nm)
 Courtesy of FORD MOTOR COMPANY
|
