Steering Column Telescopic Motor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the steering column. REFER to: Steering Column .

2.

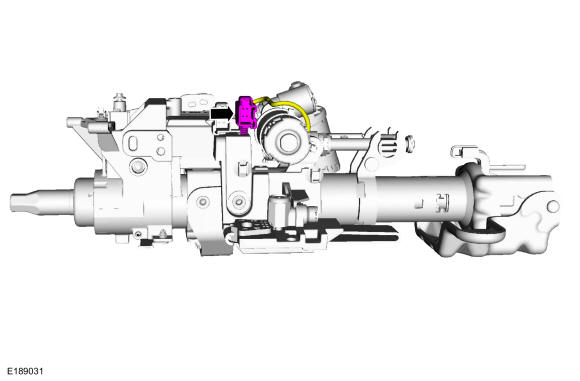

Detach the telescopic motor electrical connector retainer from the steering column.

Courtesy of FORD MOTOR COMPANY

3.

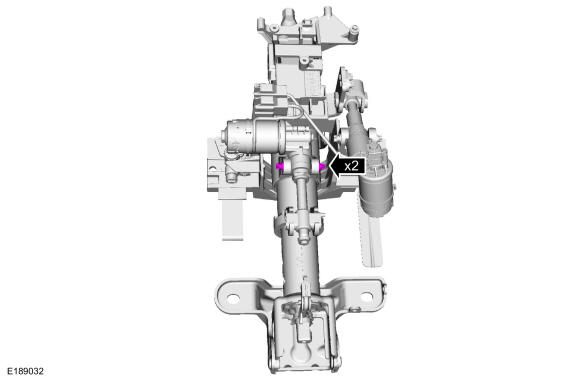

Remove the telescopic motor screws.
Torque

: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

4.

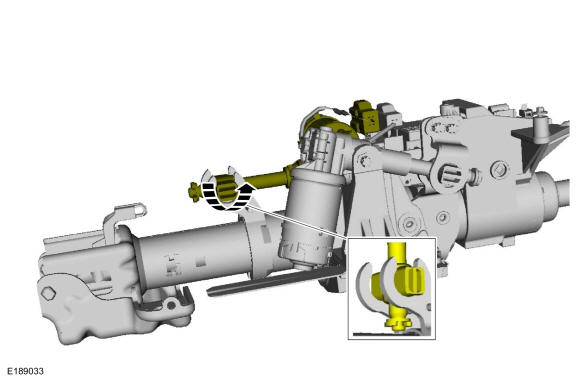

Rotate the trunnion nut.

Courtesy of FORD MOTOR COMPANY

5.

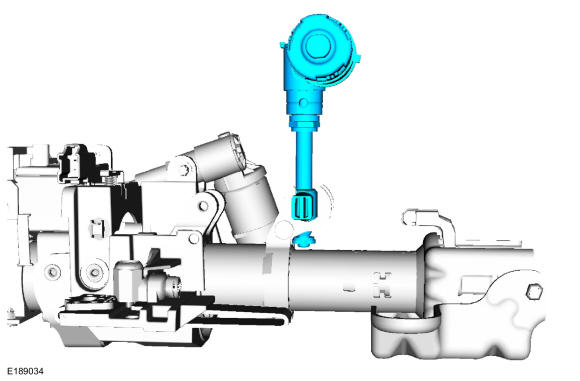

Remove the telescopic motor.

Courtesy of FORD MOTOR COMPANY
