Steering Column Telescopic Motor: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 2.

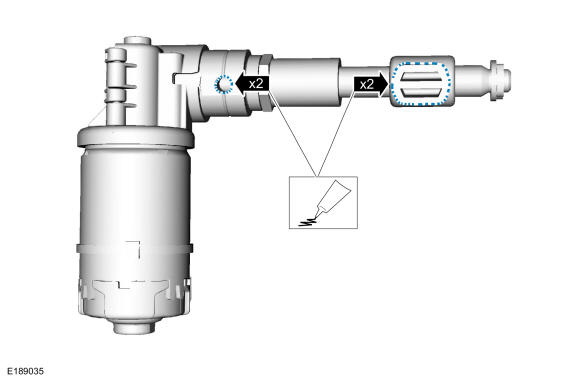

Apply grease (supplied with the new motor) to the trunnion nut axles and the telescopic motor leadscrew housing holes.
- 3.

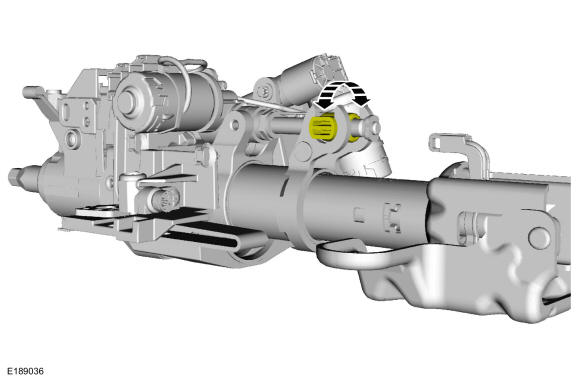

Rotate the trunnion nut until the correct length is achieved to align the leadscrew housing with the threaded holes in the support arm.
- 4.
If equipped with memory steering column, use the steering column control switch and set the soft stops as follows.- 1.
Move the column rearward until it reaches the end of travel and hold the switch for 2 seconds after the column has reached the end of travel.
- 2.
Move the column in the same direction until it reaches the end of travel again and hold the switch for 2 seconds after the motor has reached the end of travel. This clears any unintended soft stops.
- 3.
Move the column forward until it reaches the end of travel and hold the switch for 2 seconds after the motor has reached the end of travel.
- 4.
Move the column in the same direction until it reaches the end of travel and hold the switch for 2 seconds after the motor has reached the end of travel. This clears any unintended soft stops.
- 1.
