Wheel Speed Sensor Ring: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the axle shaft. Vehicles With: Ford 8.8 Inch Ring Gear, Refer to: Axle Shaft . Vehicles With: Ford 9.75 Inch Ring Gear, Refer to: Axle Shaft .

2.

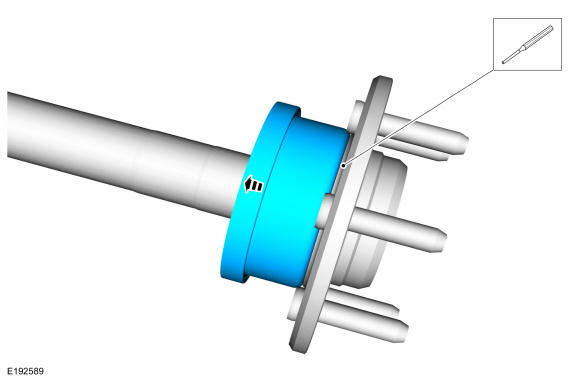

Using a suitable driver, remove the wheel speed sensor ring. Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY
