Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Right hand (RH) wheel speed sensor

1.

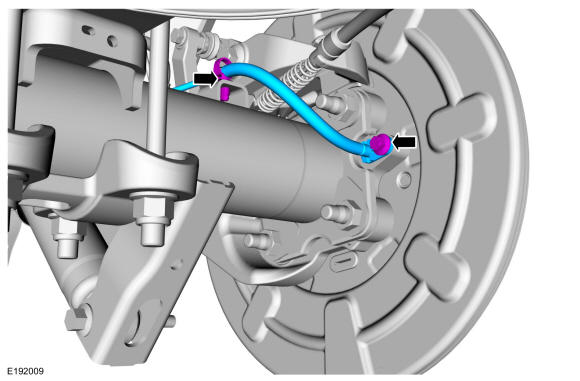

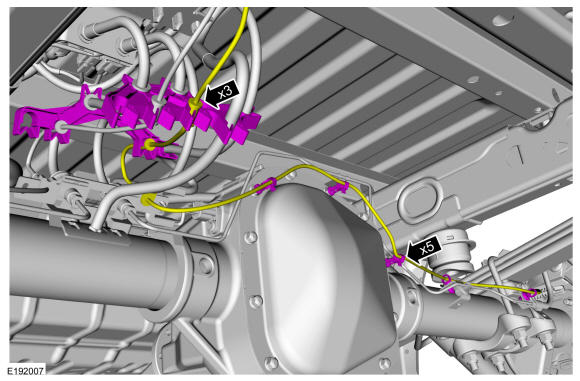

Detach the harness isolators from the brake hose brackets and detach the 5 harness retainers from the axle.

Courtesy of FORD MOTOR COMPANY

Left hand (LH) wheel speed sensor

2.

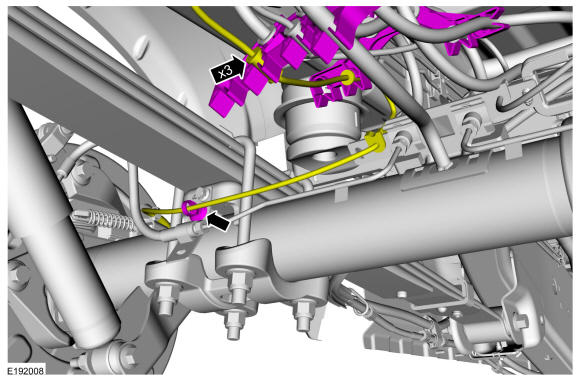

Detach the harness isolators from the brake hose brackets and detach the harness retainer from the axle.

Courtesy of FORD MOTOR COMPANY

Right hand (RH) and left hand (LH) wheel speed sensors

3.

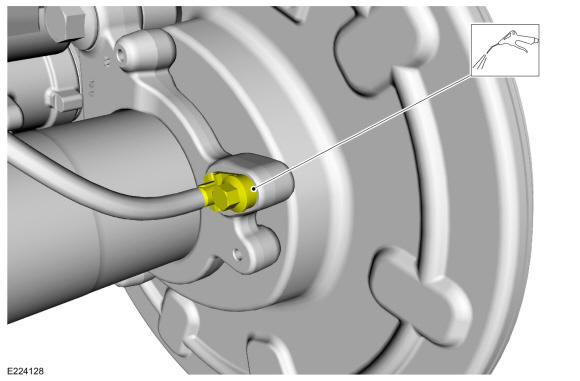

Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

4.

Detach the harness retainer, remove the bolt and the wheel speed sensor.
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
