Brake Vacuum Sensor: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

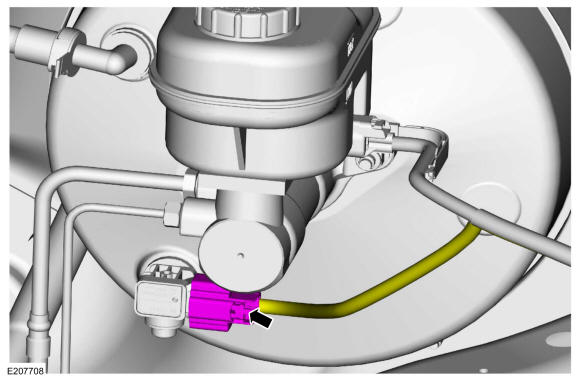

Disconnect the vacuum sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

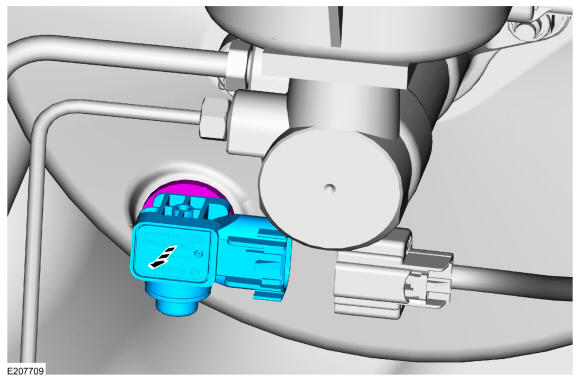

Remove the vacuum sensor.

Courtesy of FORD MOTOR COMPANY
