Brake Vacuum Pump - 3.5L EcoBoost (272kW 370PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the oil fill tube cap and the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

2.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .

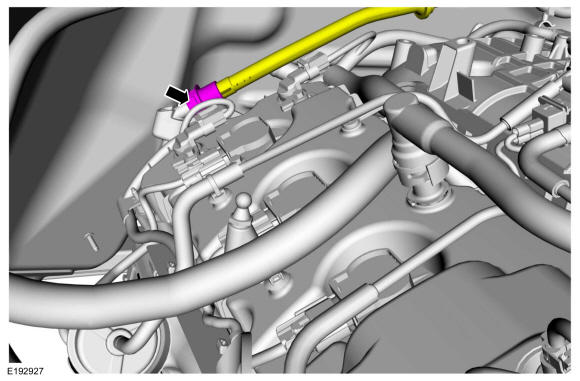

3.

Release the coupling and disconnect the vacuum tube.

Courtesy of FORD MOTOR COMPANY

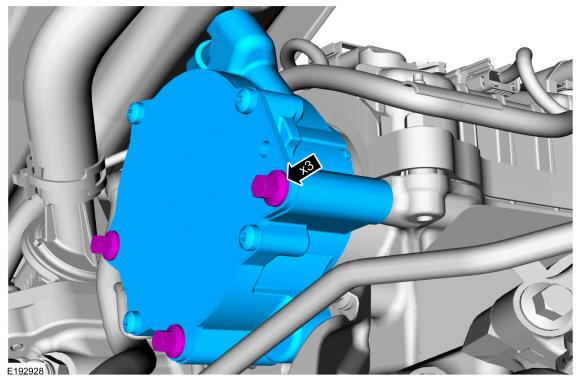

4.

NOTE: The upper/inboard vacuum pump bolt will remain in the vacuum pump housing when removing the vacuum pump.

Remove the 3 bolts and the brake vacuum pump.
