Brake Vacuum Pump - 2.7L EcoBoost (238kW 324PS): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

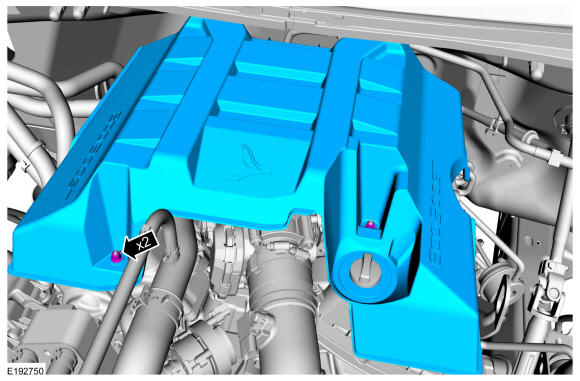

1.

Remove the 2 nuts and the engine appearance cover.

Courtesy of FORD MOTOR COMPANY

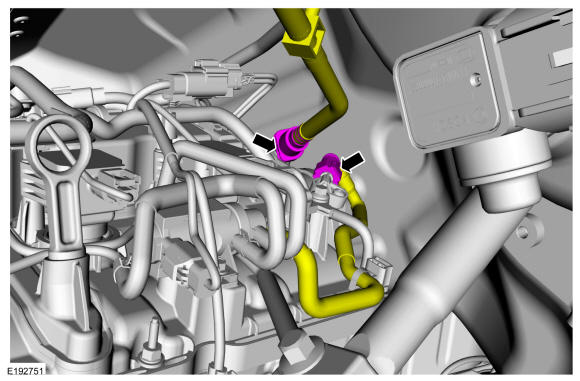

2.

Release the couplings and disconnect the 2 vacuum tubes.

Courtesy of FORD MOTOR COMPANY

3.

Remove the LH front wheel and tire. Refer to: Wheel and Tire .

4.

Remove the LH fender splash shield. Refer to: Fender Splash Shield .

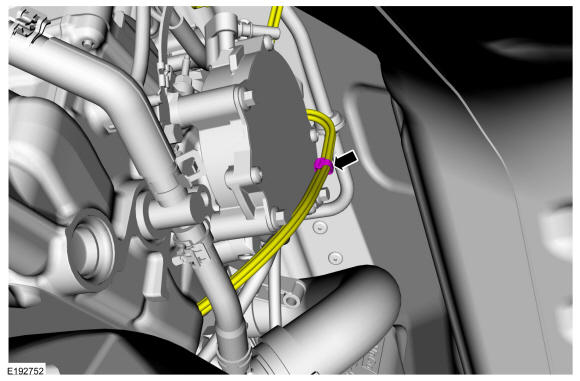

5.

Detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

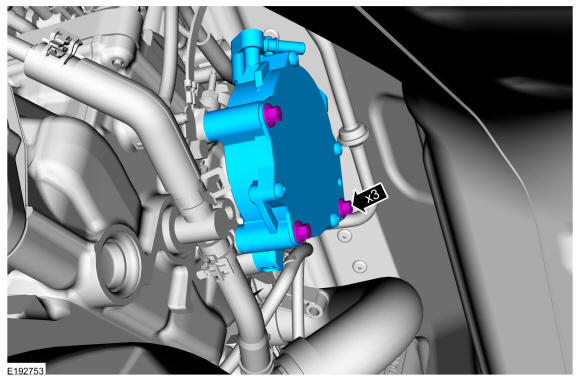

6.

Remove the 3 bolts and the brake vacuum pump.

Courtesy of FORD MOTOR COMPANY
