Brake Master Cylinder: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

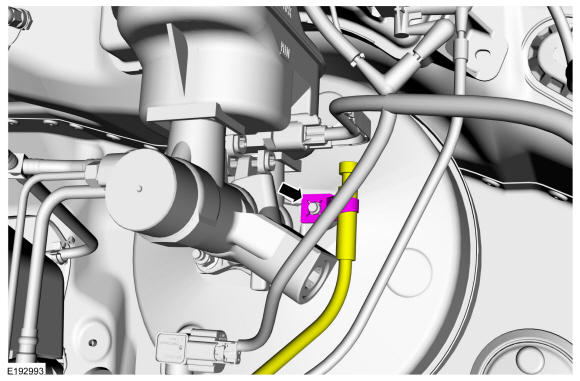

If equipped, disconnect the front drive axle vent retainer.

Courtesy of FORD MOTOR COMPANY

2.

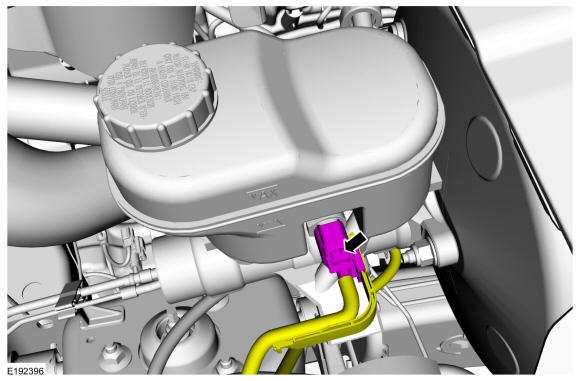

Disconnect the brake fluid level sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

3.

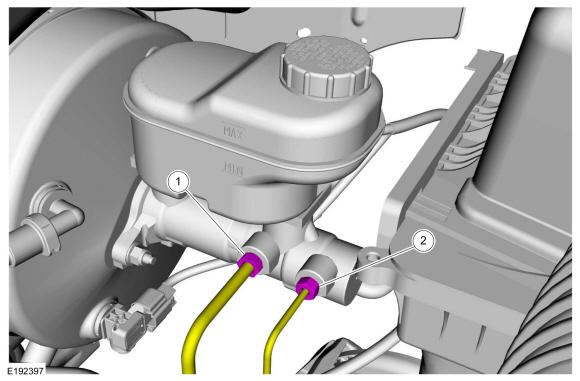

Disconnect the 2 brake tube fittings.
1. 1.

  Disconnect the primary brake tube fitting.
  Torque

  : 22 lb.ft (30 Nm)
1. 2.

  Disconnect the secondary brake tube fitting.
  Torque

  : 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

4.

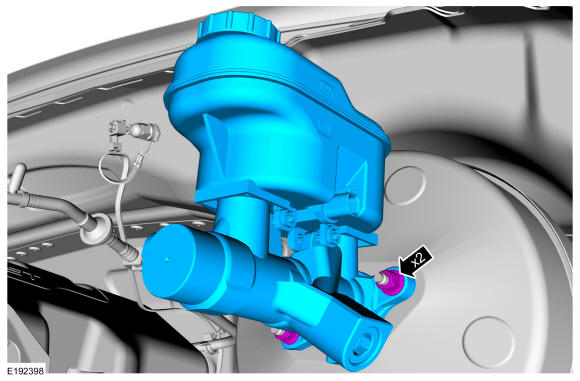

Remove the 2 nuts and the brake master cylinder.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
