Parking Brake Warning Indicator Switch: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

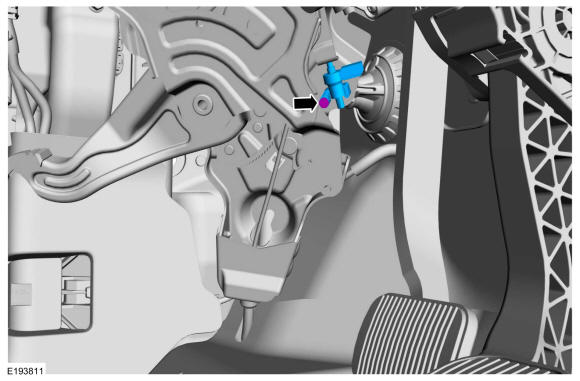

Disconnect the parking brake indicator switch electrical connector.

Courtesy of FORD MOTOR COMPANY

2.

Remove the 2 bolts, loosen the remaining bolt 2 full turns and position the parking brake control aside.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

3.

Remove the bolt and the parking brake indicator switch.
Torque

: 18 lb.in (2 Nm)

Courtesy of FORD MOTOR COMPANY
