Parking Brake Shoes: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Axle shaft removed from illustrations for clarity.

1.

Remove the brake disc. Refer to Brake Disc .

2.

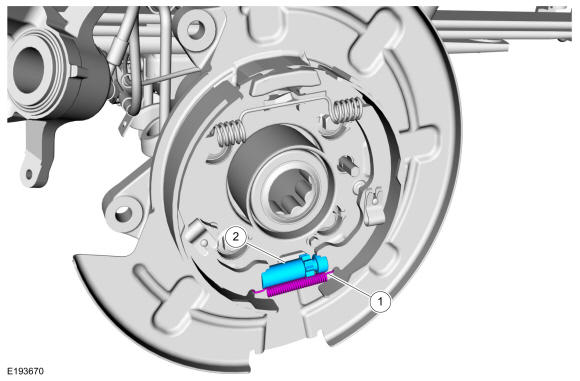

- 1.

  Remove the spring.
- 2.

  Remove the parking brake shoe adjuster.

Courtesy of FORD MOTOR COMPANY

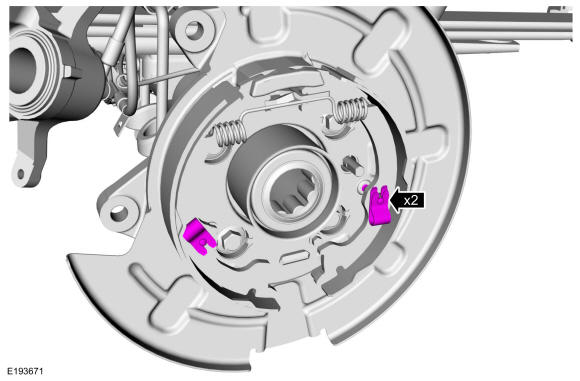

3.

Remove the 2 parking brake show hold down springs and pins.

Courtesy of FORD MOTOR COMPANY

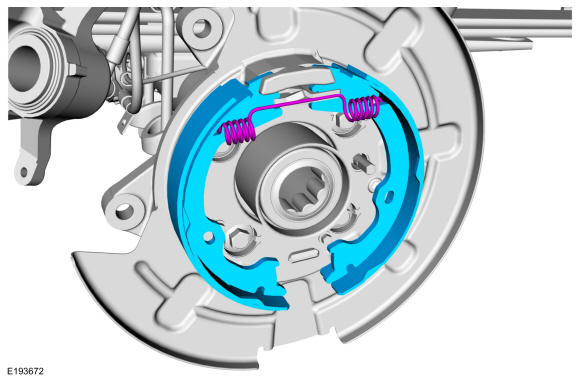

4.

Remove the spring and the parking brake shoes.

Courtesy of FORD MOTOR COMPANY

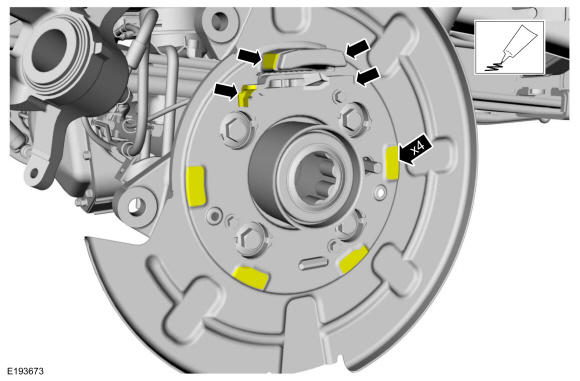

5.

Using specified grease, lubricate the parking brake shoe, actuator lever and the support bracket contact points.
Material

: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
