Parking Brake Front Cable: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the parking brake control. Refer to Parking Brake Control .

2.

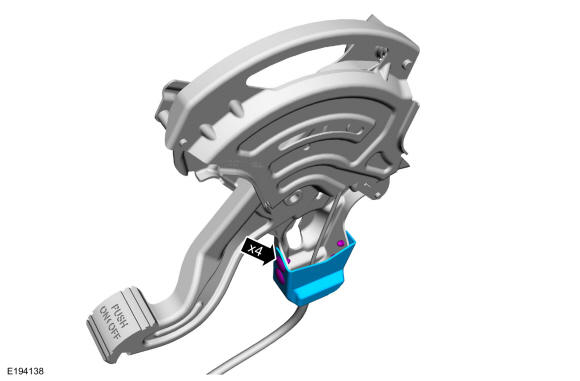

Remove the 4 pin-type retainers and the cover.

Courtesy of FORD MOTOR COMPANY

3.

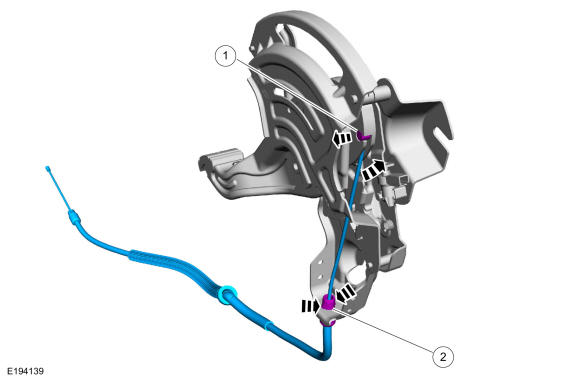

- 1.

  Rotate the cable upwards and pull the cable end out of the parking brake control.
- 2.

  Press inward on the 2 cable retainer tabs and remove the front parking brake cable.

Courtesy of FORD MOTOR COMPANY
