Parking Brake Shoe Adjustment

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s) / General Equipment

Caliper Gauge

Activation

1.

Remove the brake disc. Refer to Brake Disc .

2.

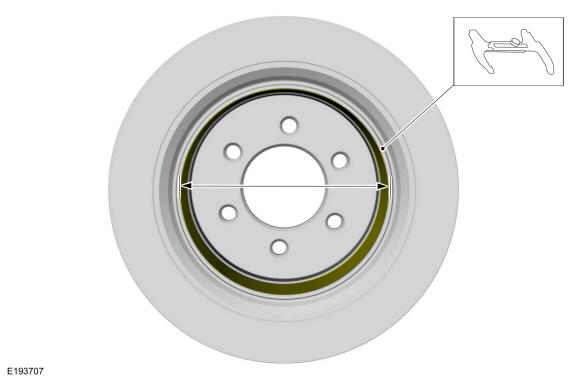

Measure ID of the drum portion of the brake disc. Record the measurement.
Use the General Equipment: Caliper Gauge

GFD38845

Courtesy of FORD MOTOR COMPANY

3.

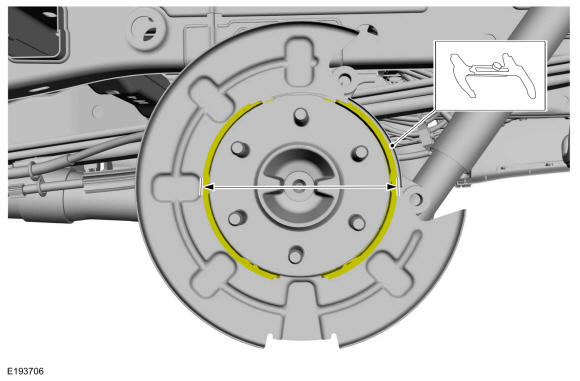

Measure the widest diameter of the parking brake shoes.
Use the General Equipment: Caliper Gauge

GFD38846

Courtesy of FORD MOTOR COMPANY

4.

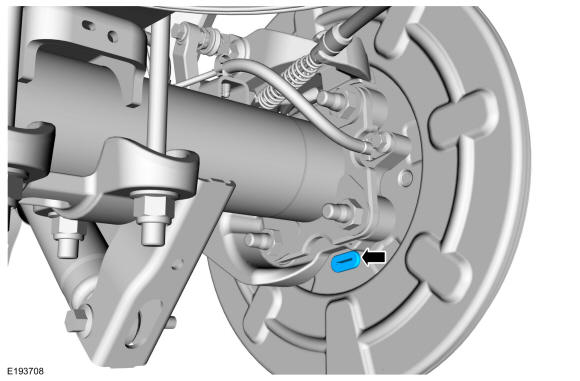

Remove the backing plate plug.

GFD38847

Courtesy of FORD MOTOR COMPANY

5.

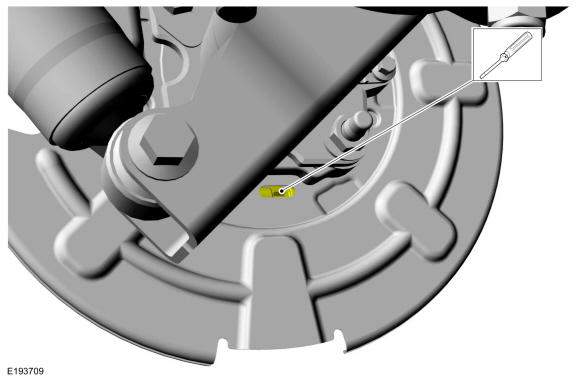

Adjust the parking brake shoe clearance by rotating the adjuster until the parking brake shoes measure 0.59 mm (0.023 in) less than the recorded ID of the drum portion of the brake disc.

GFD38848

Courtesy of FORD MOTOR COMPANY

6.

Install the backing plate plug.

GFD38847

Courtesy of FORD MOTOR COMPANY

7.

Install the brake disc. Refer to Brake Disc .
