Rear Disc Brake Shield: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Remove the axle shaft. Refer to: Axle Shaft - Vehicles With: Ford 8.8 Inch Ring Gear. Refer to: Axle Shaft - Vehicles With: Ford 9.75 Inch Ring Gear.

Vehicles without electronic parking brake (EPB)

2.

Remove the parking brake shoes. Refer to: Parking Brake Shoes .

3.

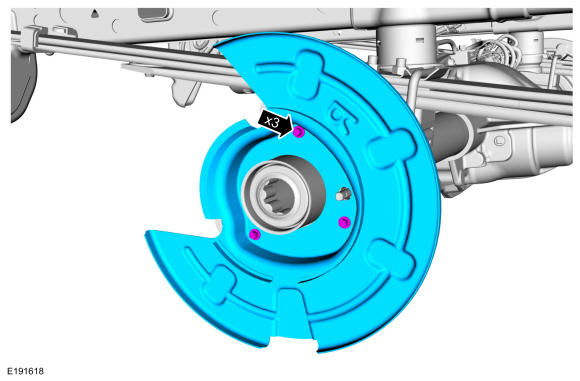

Remove the 3 bolts and the brake disc shield.
Torque

: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles with electronic parking brake (EPB)

4.

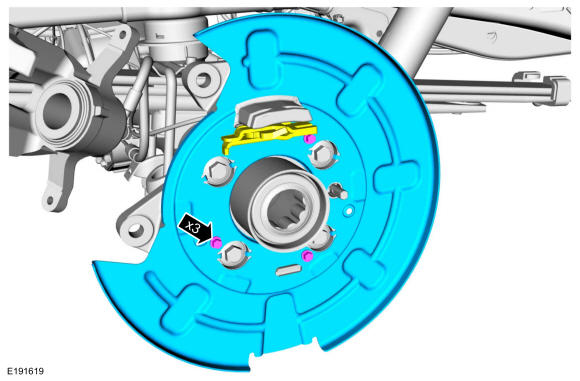

Remove the 3 bolts and the brake disc shield.
Torque

: 155 lb.in (17.5 Nm)

Courtesy of FORD MOTOR COMPANY
