Rear Brake Pads - Vehicles With: Electronic Parking Brake (EPB): Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.
Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .
- 2.
Remove the wheel and tire. Refer to: Wheel and Tire .
- 3.NOTE: Do not pry in the caliper sight hole to retract the pistons as this can damage the pistons and boots.NOTE: Do not allow the brake caliper to hang from the brake hose or damage to the hose can occur.

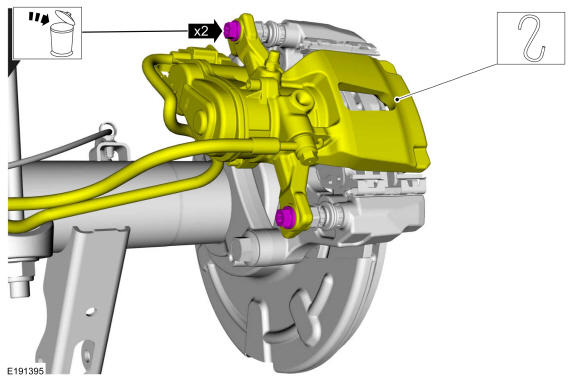

Remove the 2 bolts and position the brake caliper aside. Discard the bolts.
Torque
: 24 lb.ft (32 Nm)
- 6.NOTE: Do not use a C-clamp to compress the brake caliper piston or damage the parking brake actuator motor may occur.

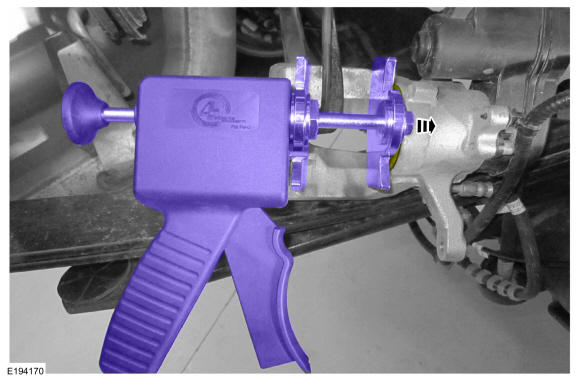

If installing new brake pads, compress the disc brake caliper pistons into the brake caliper bore.
Use the General Equipment: Brake Caliper Piston Retractor
