Rear Brake Outer Flexible Hose: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

Right hand (RH) and left hand (LH) outer brake hoses

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

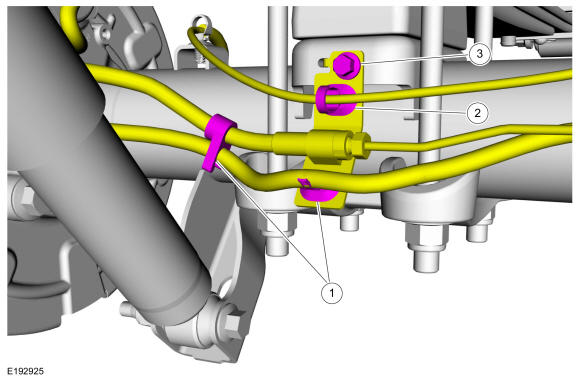

3.
- 1.

  If equipped with EPB, detach the EPB wiring retainer and unclip the brake hose.
- 2.

  Detach the wheel speed sensor wiring retainer.
- 3.

  Remove the outer brake hose bracket bolt.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

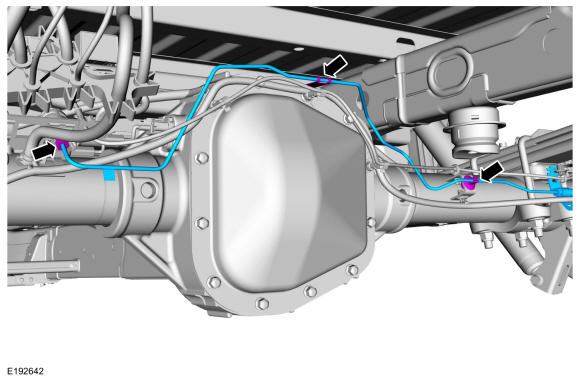

Right hand (RH) outer brake hose

4.

Detach the brake tube from the 2 axle clips, disconnect the brake tube fitting and remove the RH rear outer brake flexible hose/tube assembly.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY

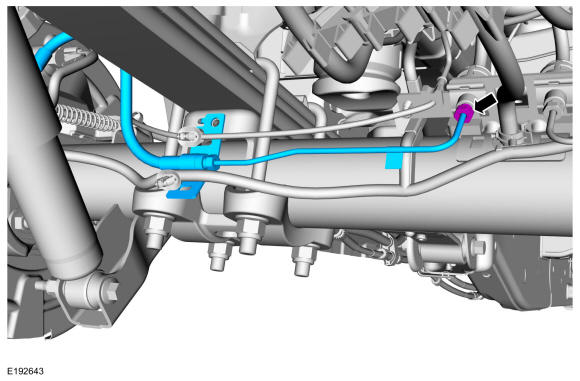

Left hand (LH) outer brake hose

5.

Disconnect the brake tube fitting and remove the LH rear outer brake flexible hose/tube assembly.
Torque

: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
