Rear Brake Inner Flexible Hose: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.

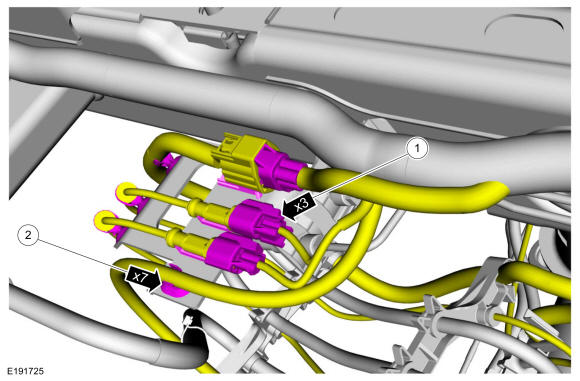

- 1.
Disconnect the 2 wheel speed sensor electrical connectors and, if equipped, the EPB electrical connector.
- 2.
Detach the 7 wiring retainers from the brake hose upper bracket and position the wiring aside.
- 1.
- 2.

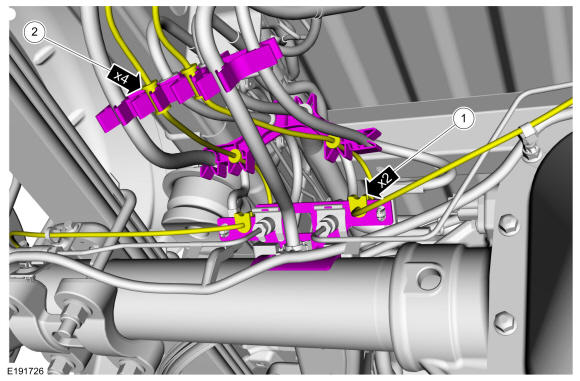

- 1.
Disconnect the 2 wheel speed sensor wiring retainers from the brake hose lower bracket.
- 2.
Detach the 4 wheel speed sensor wiring retainers from the routing brackets and position the wiring aside.
- 1.
- 3.

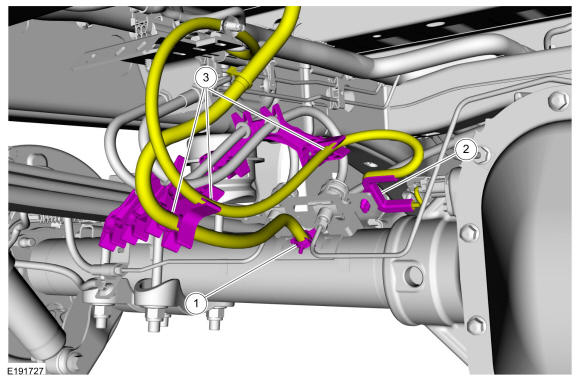

- 1.
Release the clamp and disconnect the axle vent hose.
- 2.
If equipped, detach the ELD wiring retainer from the brake hose lower bracket.
- 3.
Detach the ELD wiring (if equipped) and the axle vent hose from the routing brackets. Position the wiring and axle vent hose aside.
- 1.
- 4.

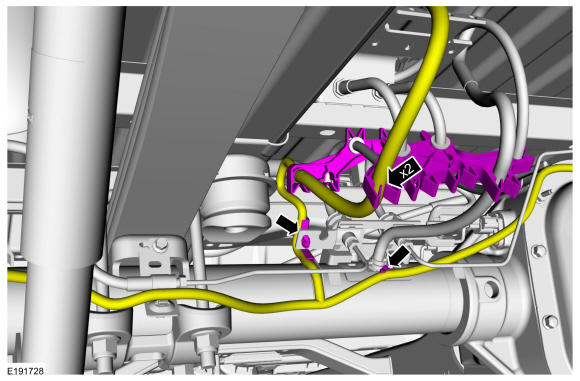

If equipped with EPB, detach the 2 EPB wiring retainers and detach the wiring from the 2 brake routing brackets. Position the EPB wiring aside.
- 5.

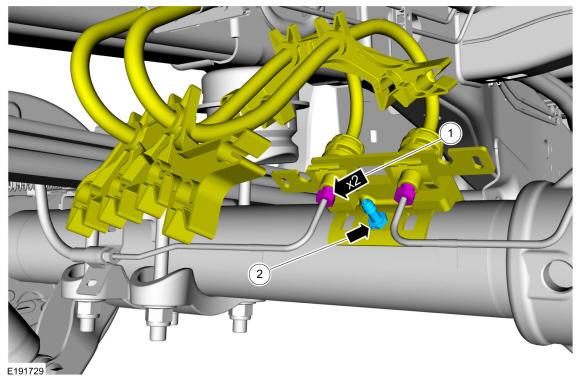

- 1.
Disconnect the 2 brake tube fittings.Torque
: 156 lb.in (17.6 Nm)
- 2.
Remove the axle vent.Torque
: 156 lb.in (17.6 Nm)
- 1.
- 6.
- 1.
Disconnect the 2 brake tube fittings.Torque
: 156 lb.in (17.6 Nm)
- 2.
Remove the brake hose upper bracket bolt and the brake flexible hose and bracket assembly.Torque
: 156 lb.in (17.6 Nm)
- 1.
