Rear Brake Caliper Anchor Plate: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Remove the brake pads. Refer to: Brake Pads - Vehicles Without: Electronic Parking Brake (EPB) . Refer to: Brake Pads - Vehicles With: Electronic Parking Brake (EPB) .

Vehicles with electronic parking brake (EPB)

2.

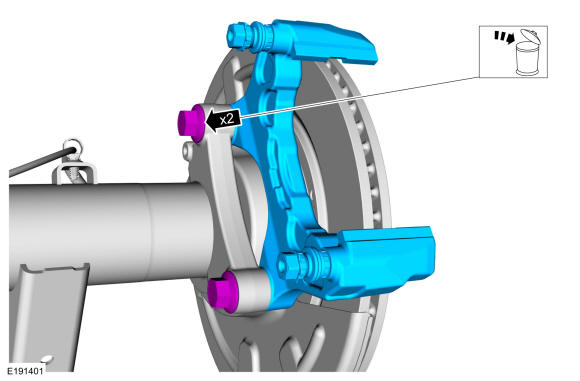

Remove the 2 bolts and the anchor plate. Discard the bolts
Torque

: 181 lb.ft (245 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles without electronic parking brake (EPB)

3.

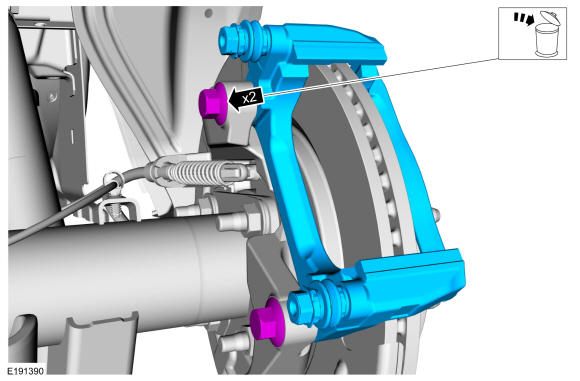

Remove the 2 bolts and the anchor plate. Discard the bolts
Torque

: 111 lb.ft (150 Nm)

Courtesy of FORD MOTOR COMPANY
