Rear Brake Caliper - Vehicles With: Electronic Parking Brake (EPB): Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

1.

WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Put the electronic parking brake system into service mode prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.

Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .

2.

Remove the wheel and tire. Refer to: Wheel and Tire .

3.

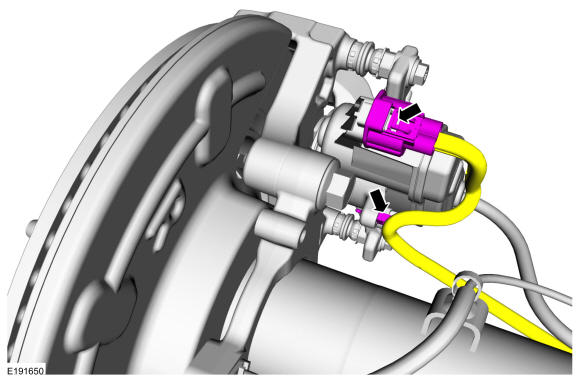

Disconnect the EPB actuator motor electrical connector and detach the wiring retainer.

Courtesy of FORD MOTOR COMPANY

4.

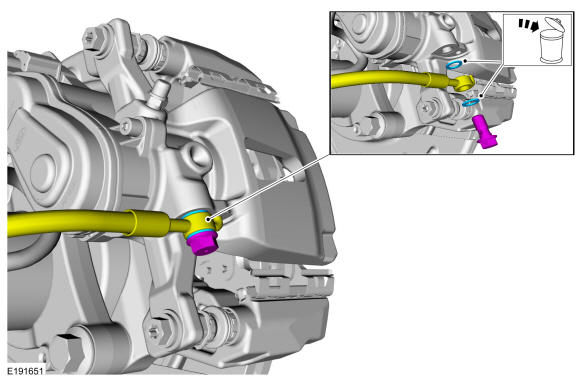

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

5.

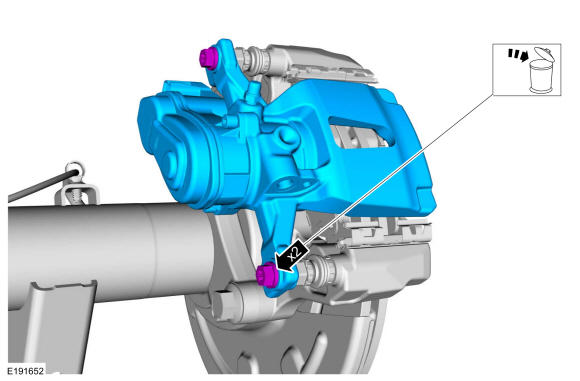

Remove the 2 bolts and the brake caliper. Discard the bolts.
Torque

: 27 lb.ft (36 Nm)

Courtesy of FORD MOTOR COMPANY

6.

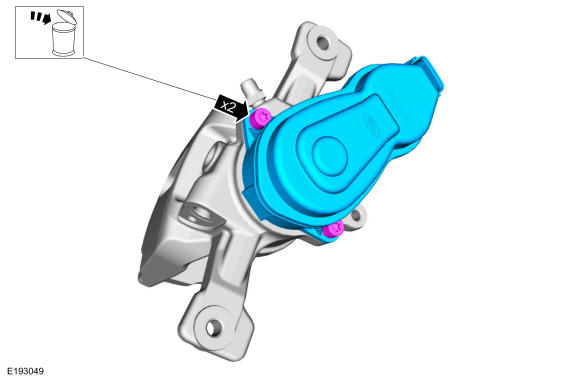

Remove the 2 bolts and the parking brake actuator motor. Discard the bolts.
Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
