Front Brake Flexible Hose: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

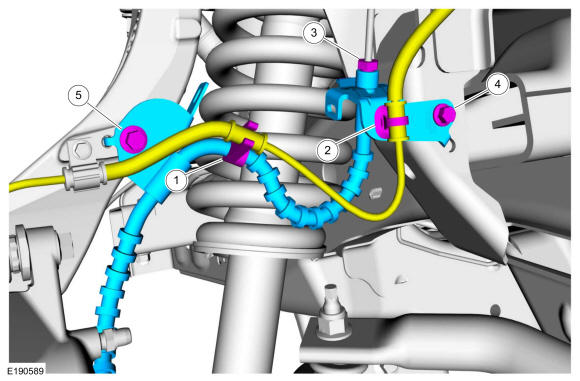

Front wheel drive (FWD) vehicles

2.
- 1.

  Unclip the wheel speed sensor harness from the brake hose.
- 2.

  Detach the wheel speed sensor wiring retainer.
- 3.

  Disconnect the brake tube fitting.
  Torque

  : 159 lb.in (18 Nm)
- 4.

  Remove the brake hose bracket bolt.
  Torque

  : 159 lb.in (18 Nm)
- 5.

  Remove the brake hose bracket bolt and the brake hose.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

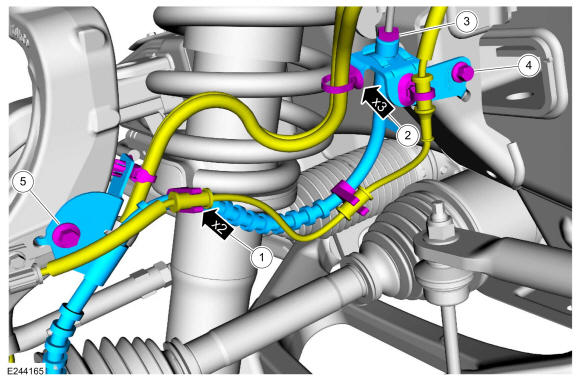

Four wheel drive (4x4) vehicles

3.
- 1.

  Unclip the wheel speed sensor harness from the brake hose.
- 2.

  Detach the vacuum hose retainers and the wheel speed sensor harness retainer.
- 3.

  Disconnect the brake tube fitting.
  Torque

  : 159 lb.in (18 Nm)
- 4.

  Remove the brake hose bracket bolt.
  Torque

  : 159 lb.in (18 Nm)
- 5.

  Remove the brake hose bracket bolt and the brake hose.
  Torque

  : 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY
