Front Brake Caliper: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that all openings are sealed.

NOTE: If the fluid is spilled on the paintwork, the affected area must be immediately washed down with cold water.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

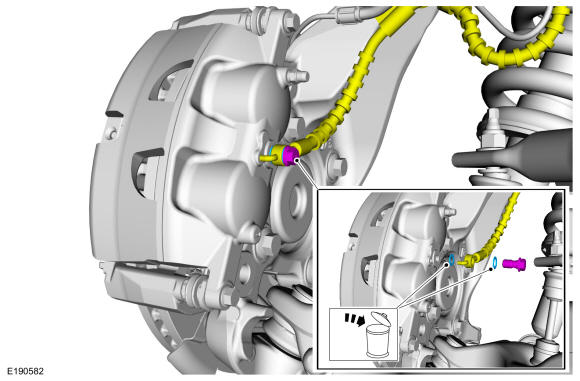

Remove the bolt and disconnect the brake hose. Discard the washers.
Torque

: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

3.

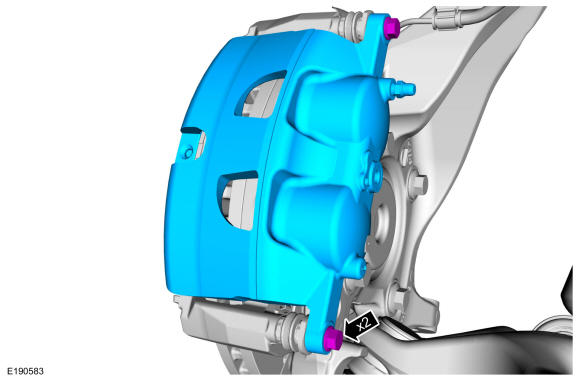

Remove the 2 bolts and the brake caliper.
Torque

: 27 lb.ft (36 Nm)

Courtesy of FORD MOTOR COMPANY
