Drive Pinion Flange and Seal: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the front brake pads. REFER to: Brake Pads .

2.

Remove the front driveshaft. REFER to: Front Driveshaft .

3.
- 1.

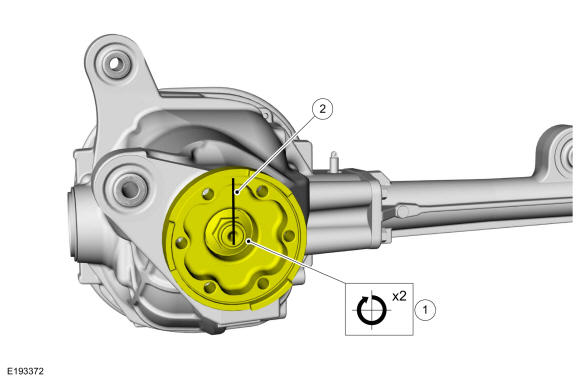

  Using a dial type torque wrench, measure and record the rotational torque of the drive pinion.
- 2.

  Index-mark the pinion flange and the drive pinion gear.

Courtesy of FORD MOTOR COMPANY

4.

Using the special tool, remove the pinion nut.
Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.

Courtesy of FORD MOTOR COMPANY

5.

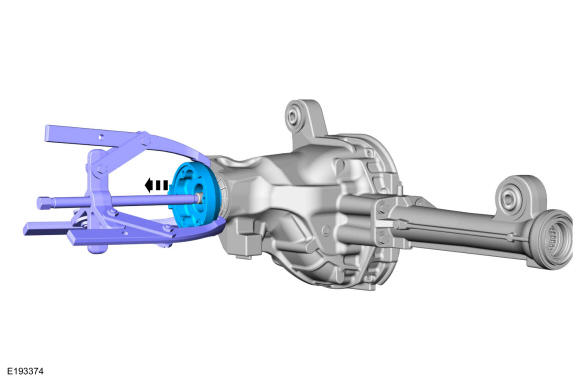

Using the 3 leg puller, remove the pinion flange.
Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY

6.

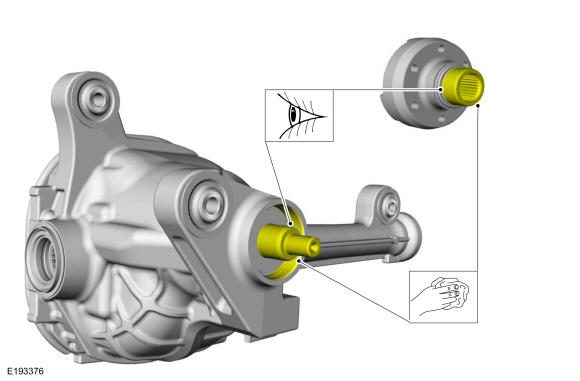

Clean and inspect the pinion flange mating surfaces and pinion seal surface.
