Differential Ring Gear and Pinion: Removal

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the axle assembly. REFER to: Axle Assembly .

2.

Remove the differential carrier. REFER to: Differential Carrier .

3.

Remove the drive pinion flange and seal. REFER to: Drive Pinion Flange and Seal .

4.

Remove the outer drive pinion oil slinger.

Courtesy of FORD MOTOR COMPANY

5.

Remove the outer drive pinion bearing.

Courtesy of FORD MOTOR COMPANY

6.

Remove and discard the drive pinion collapsible spacer.

Courtesy of FORD MOTOR COMPANY

7.

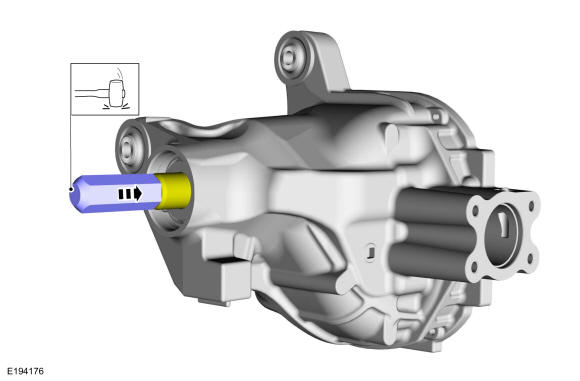

Using the special tool and a soft hammer, remove the pinion gear.
Use Special Service Tool: 205-460 Protector, Drive Pinion Thread.

Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

8.

Remove the inner drive pinion bearing.

Courtesy of FORD MOTOR COMPANY

9.

Remove the inner drive pinion bearing adjustment shim.

Courtesy of FORD MOTOR COMPANY

10.

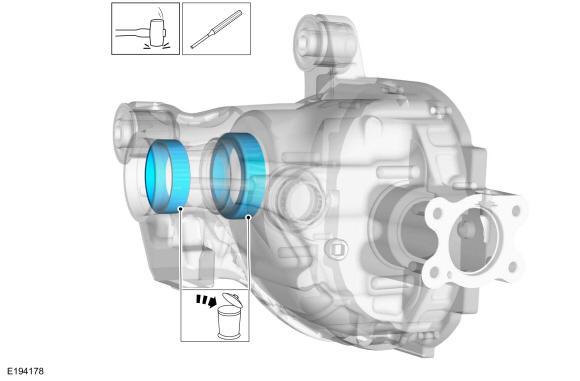

Using the general equipment, remove and discard the drive pinion bearing cups.
Use the General Equipment: Copper Hammer

Use the General Equipment: Punch

Courtesy of FORD MOTOR COMPANY

11.

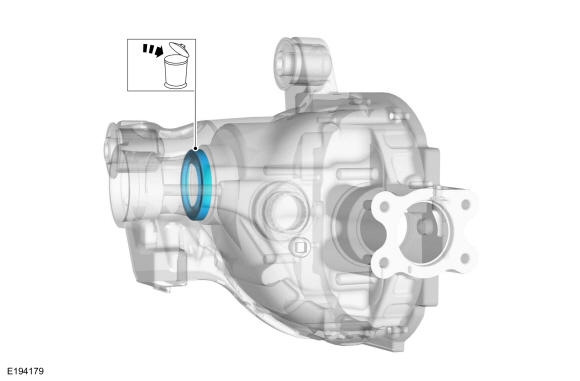

If necessary. Remove and discard the drive pinion oil baffle.

Courtesy of FORD MOTOR COMPANY

12.

Remove and discard the differential ring gear bolts.

Courtesy of FORD MOTOR COMPANY

13.

Using a brass punch and copper hammer, separate the ring gear from the differential case.
Use the General Equipment: Punch

Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

14.

Using the 3 Jaw Puller and Step Plate, remove and discard the differential bearings.
Use Special Service Tool: 205-D061 (D83T-4205-C2) Step Plate.

Use the General Equipment: Three Leg Puller

Courtesy of FORD MOTOR COMPANY
