Differential Carrier: Installation
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 3.

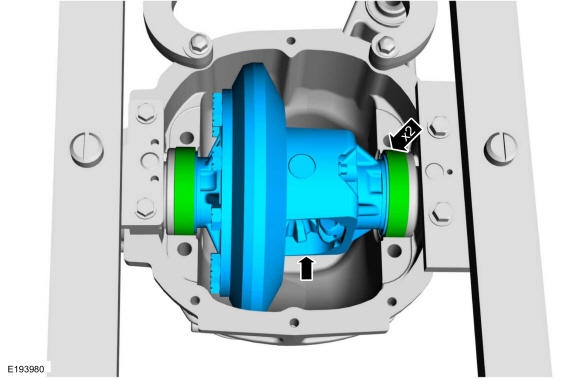

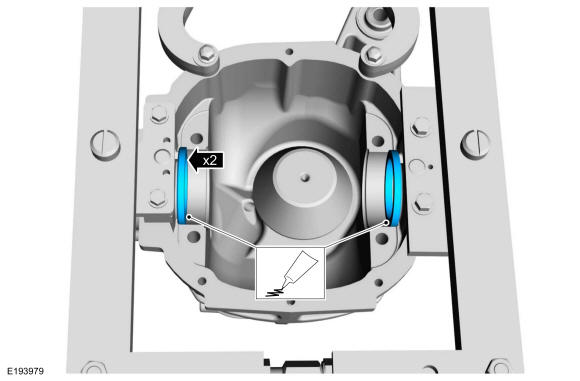

- 1.NOTE: The fixture mounting bolts must have the minimum of 12.7 mm (0.500 In) of thread engagement in the carrier or damage to the component may occur.NOTE: Always install the differential bearing caps in their original positions or damage to the component may occur.

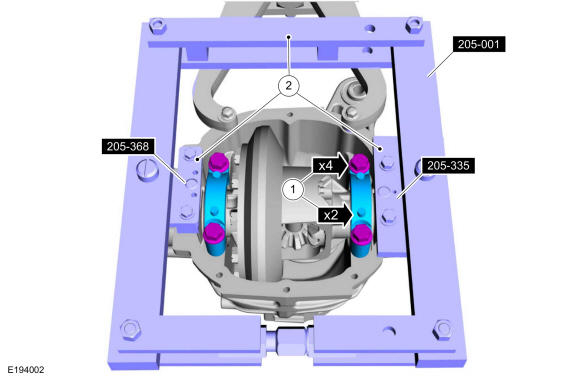

With the differential housing spread to 0.762 mm (0.030 in) maximum. Install the differential caps and the differential cap bolts.
Torque
: 77 lb.ft (105 Nm)
- 1.
- 2.
Remove the special tools.Use Special Service Tool: 205-001 (TOOL-4000-E) Spreader, Differential Carrier, 205-335 (T93P-4000-A) Spreader, Differential Housing (Plate), 205-368 (T96T-4000-A) Adapter for Differential Housing Spreader.
- 4.
Using the dial indicator, measure the differential ring gear backlash at 4 equally spaced points.Use the General Equipment: Dial Indicator
- 5.NOTE: The fixture mounting bolts must have the minimum of 12.7 mm (0.500 In) of thread engagement in the carrier or damage to the component may occur.
Remove the axle assembly from the special tool.
Use Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission.

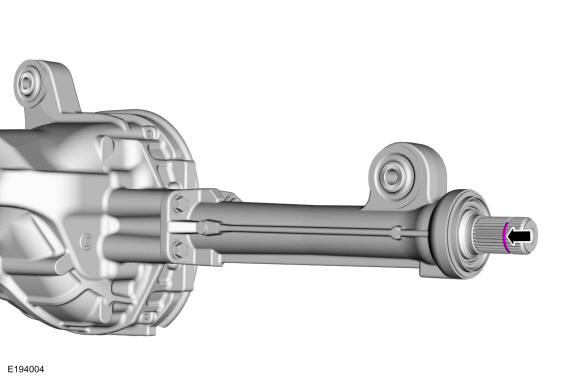

- 8.NOTE: The axle shaft is not fully seated until the circlip is engaged with the differential side gear.

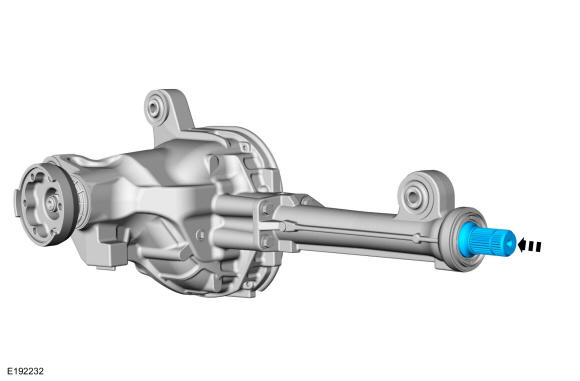

Install the axle shaft.
- 9.
Apply a new continuous bead of sealant to the differential housing cover as shown in illustration.Material
: Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)
- 11.
Install the front axle assembly. REFER to: Axle Assembly .
