Axle Shaft Seal: Removal
WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- 1.
Remove the halfshaft. REFER to: Halfshaft .
- 2.NOTE: Right side only.
Using the special tool and a slide hammer, remove the axle shaft.
Use Special Service Tool: 307-397 Remover, Transmission Fluid Pump.
Use the General Equipment: Slide Hammer

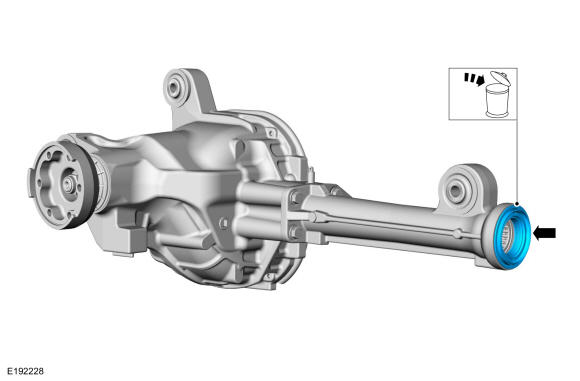

- 3.NOTE: Right side shown in illustration, left side similar.
Remove and discard the axle shaft seal.
- 4.NOTE: Right side shown in illustration, left side similar.
Using the special tool and a slide hammer, remove and discard the axle shaft pilot bearing.
Use Special Service Tool: 307-397 Remover, Transmission Fluid Pump.
Use the General Equipment: Slide Hammer
