Axle Shaft Seal: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Replace the axle shaft circlips.

Courtesy of FORD MOTOR COMPANY

2.

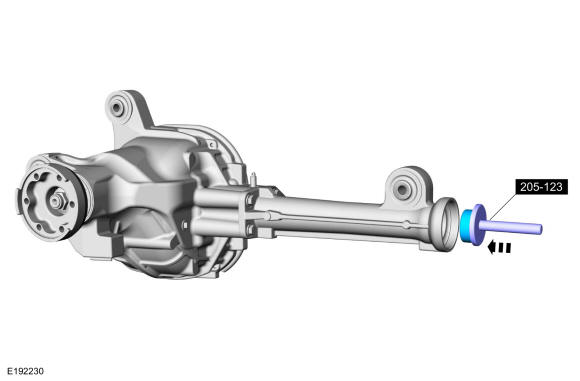

Using the special tool, install the new axle shaft pilot bearing.
Use Special Service Tool: 205-123 (T78P-1177-A)Installer, Axle Shaft Oil Seal.

Courtesy of FORD MOTOR COMPANY

3.

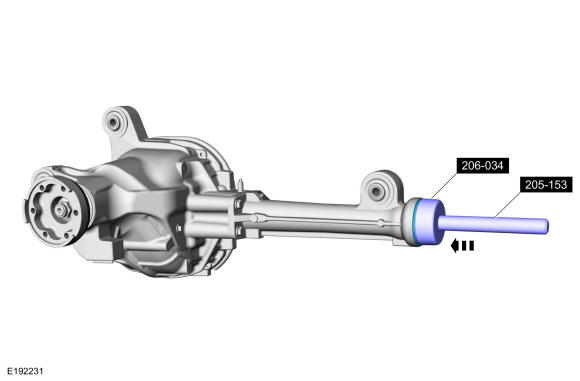

Using the special tools, install the new axle shaft seal.
Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 206-034 (T88P-20202-B) Installer, Wheel Speed Sensor Ring.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: The axle shaft is not fully seated until the circlip is engaged with the differential side gear.

Install the axle shaft.

Courtesy of FORD MOTOR COMPANY

5.

Install the halfshafts. REFER to: Halfshaft .
