Axle Carrier Bushing: Installation

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

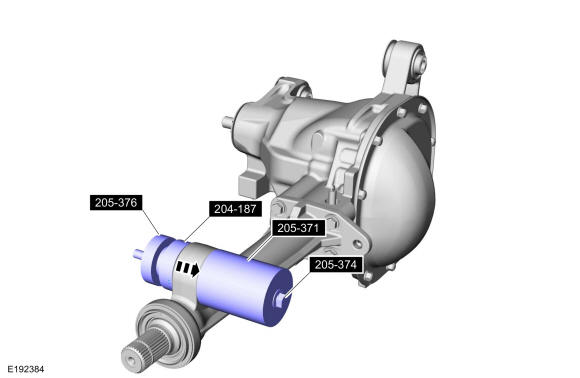

Using the special tools, install the axle tube bushing.
Use Special Service Tool: 204-187 (T95T-5638-BH) Installer, Front Differential Housing Bushing, 205-371 (T96T-5638-E) Remover, Front Axle Mounting Bushing Cup, 205-374 (T96T-5638-H)Installer, Front Axle Mounting Bushing Drawbolt, 205-376 (T96T-5638-K) Remover, Front Axle Mounting Bushing.

GFD38683

Courtesy of FORD MOTOR COMPANY

2.

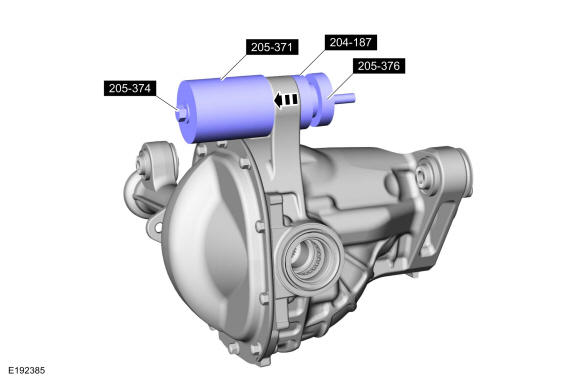

Using the special tools, install the rear housing bushing.
Use Special Service Tool: 204-187 (T95T-5638-BH) Installer, Front Differential Housing Bushing, 205-371 (T96T-5638-E) Remover, Front Axle Mounting Bushing Cup, 205-374 (T96T-5638-H) Installer, Front Axle Mounting Bushing Drawbolt, 205-376 (T96T-5638-K) Remover, Front Axle Mounting Bushing.

GFD38684

Courtesy of FORD MOTOR COMPANY

3.

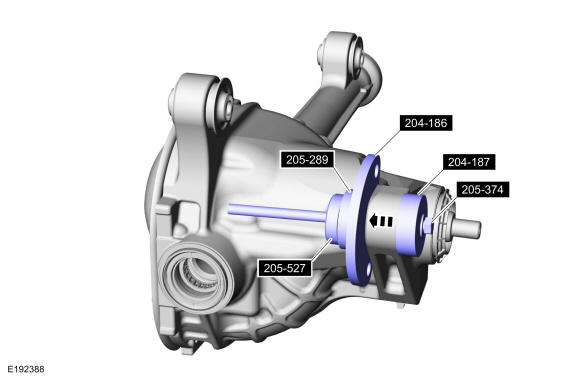

Using the special tools, install the front housing bushing.
Use Special Service Tool: 204-186 (T95T-5638-AH) Remover, Front Differential Housing Bushing, 204-187 (T95T-5638-BH) Installer, Front Differential Housing Bushing, 205-289 (T89P-1249-A)Installer, Wheel Hub Dust Seal, 205-374 (T96T-5638-H) Installer, Front Axle Mounting Bushing Drawbolt, 205-527 Remover/Installer, Front Differential Housing Bushing.

GFD38685

Courtesy of FORD MOTOR COMPANY

4.

Install the drive pinion flange. REFER to: Drive Pinion Flange and Seal .

5.

Install the axle assembly. REFER to: Axle Assembly .
