Differential Carrier: Disassembly

WARNING: This page is about a different car, the 2015 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the differential carrier. REFER to: Differential Carrier .

2.

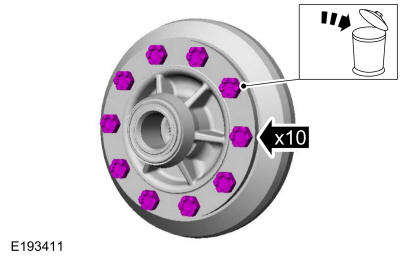

Remove and discard the differential ring gear bolts.

Courtesy of FORD MOTOR COMPANY

3.

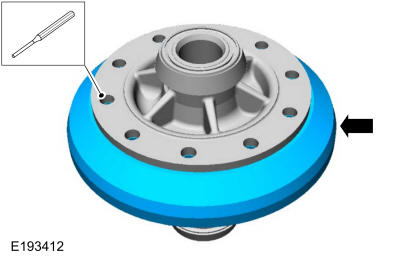

Using a brass punch and copper hammer, separate the ring gear from the differential case.
Use the General Equipment: Punch

Use the General Equipment: Copper Hammer

Courtesy of FORD MOTOR COMPANY

4.

Remove and discard the differential pinion shaft bolt.

Courtesy of FORD MOTOR COMPANY

5.

Remove the differential pinion shaft.

Courtesy of FORD MOTOR COMPANY

6.

NOTE: Do not over tighten the special tool.

Using the special tool, compress the differential side gear wave washers.

Use Special Service Tool: 205-386 (T97T-4205-D) Gauge, Differential (Traction Lock).

Courtesy of FORD MOTOR COMPANY

7.

Remove the differential pinion thrust washers and the differential pinion gears.

Courtesy of FORD MOTOR COMPANY

8.

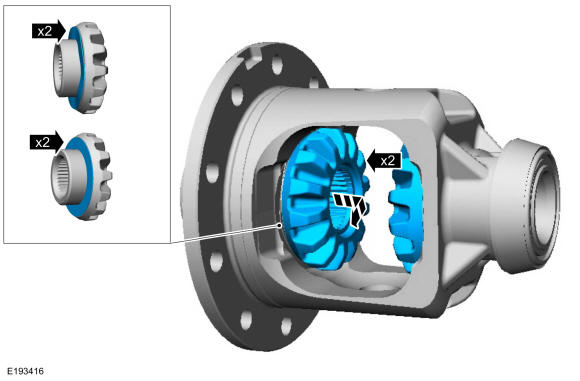

NOTE: Note the position of the differential side gear thrust washer and the differential side gear wave washer for reassembly.

Remove the differential side gear assemblies.

Courtesy of FORD MOTOR COMPANY

9.

Using the general equipment: remove and discard the differential side bearings.
Use the General Equipment: Hydraulic Press

Use the General Equipment: Bearing Separator

Courtesy of FORD MOTOR COMPANY
